Grizzly   |  Model: G0703
1-1/2 HP 2 Stage Cyclone Dust Collector
Price: $865.00
Recently Added ×
You May Also Like
(2)

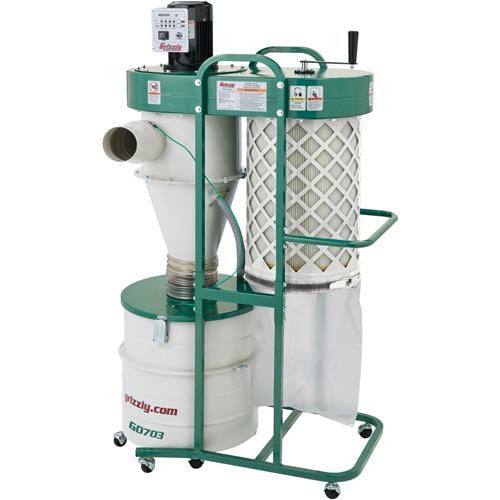

Grizzly G0703 - 1-1/2 HP 2 Stage Cyclone Dust Collector

click to zoom

tap to zoom

Videos

    See this item in our 2017 Main Catalog!
    211 215 216
    Buy Now!
    Price:
    Freight:  Freight
    Oversize:  Oversize
    Total:
    Monthly payments as low as . Learn More
    Finally, a two-stage Cyclone Dust Collector with all the features the larger cyclones, but in a compact size that fits under a standard 8' ceiling. Aside from the cleaner operation of a two-stage system, this Cyclone features a pleated filter system with internal shaker paddles for maintaining filter efficiency, remote control switch for activating the Cyclone from across the room, roll-away collection drum for easy dumping, and a 6" inlet for handling larger duct systems. If you’ve always dreamed of having a Cyclone Dust Collector, but didn’t have the space, this is the one for you!

    FEATURES:

  • Remote control switch
  • Cartridge filter has crank handle shaker for maximum filter efficiency
  • Easy cleaning drum canister rolls on swivel casters
  • Fully mobile with built-in casters
  • Unique vacuum equalizer built into collection drum for use with disposable plastic bags.

    SPECIFICATIONS:

  • Motor: 1-1/2 HP, 110V/220V, single-phase, TEFC, 3450 RPM, prewired 110V
  • Air suction capacity: 775 CFM
  • Static pressure at rated CFM: 1.80"
  • Intake port: 6" with included 5" optional port
  • Impeller: 13-1/2"
  • Cartridge filter surface area: 48 square feet
  • Sound rating: 83 dB
  • Overall dimensions: 38-1/4" W x 23-1/4" D x 68" H
  • Approx. shipping weight: 210 lbs.

    220V Operation: 220V operation requires installation of a 220V conversion kit. For your own safety, all wiring procedures MUST be completed by an electrician or other qualified service personnel. See Owner’s Manual for details. For new machines (or those made since March, 2011) order item #P0703P088. For machines made prior to March, 2011, order item #P0703088. The manufacture date is provided on the main product label of the machine.

  • Show More...

    Accessories and Related Items: View All

    You May Also Like:

    Customers who purchased this item also purchased:

    2 Customer Reviews (4.5 out of 5 stars): Sign in to write a review

    Fantastic machine! Performs flawlessly and as advertised!
    5/ 5stars

    Had a minor hiccup in the delivery of my dust collector but Grizzly's customer service was second to none in resolving the issue! I can't say enough on the quality of the machine itself! I truly believe that if you are looking for a quality piece of equipment at a very reasonable cost, you get the most for your hard earned money at Grizzly. Top it off with unparalleled customer service and you won't be disappointed, and you'll be a Grizzly customer for life!!!

    Does The Job
    4/ 5stars

    I've had this dust collector for three years and it has performed well. I use it mainly for my Sawstop and my Grizzly 15" planer. I've had no issues until today when the remote stopped working. Apparently the remote is presently on backorder. It's good for a one man small shop since the barrel is smallish and fills fast.
