Grizzly   |  Model: G0703HEP
1-1/2 HP Dual-Filtration HEPA Cyclone Dust Collector
Price: $1,295.00
Recently Added ×
You May Also Like

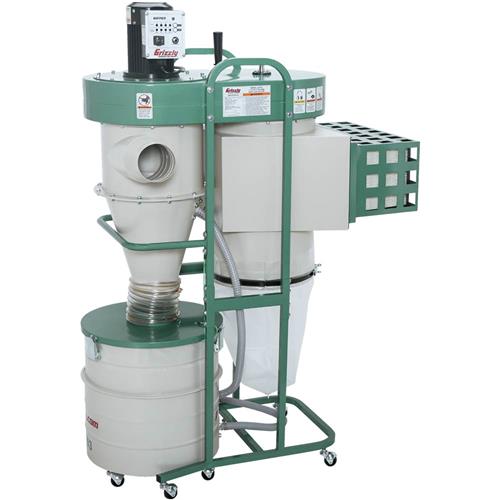

Grizzly G0703HEP - 1-1/2 HP Dual-Filtration HEPA Cyclone Dust Collector

Model: G0703HEP
Buy Now!
Freight:  Freight
Oversize:  Oversize
Monthly payments as low as . Learn More
The same unit as our G0703, but pre-equipped with the upgraded dual-filtration HEPA filter system! Features a primary filter efficiency of 99.9% at 0.2-2 microns, and a secondary HEPA filter efficiency of 99.97% at 0.3 microns in size.

Finally, a two-stage Cyclone Dust Collector with all the features the larger cyclones, but in a compact size that fits under a standard 8' ceiling. Aside from the cleaner operation of a two-stage system, this Cyclone features a pleated filter system with internal shaker paddles for maintaining filter efficiency, remote control switch for activating the Cyclone from across the room, roll-away collection drum for easy dumping, and a 6" inlet for handling larger duct systems. If you've always dreamed of having a Cyclone Dust Collector, but didn't have the space, this is the one for you!


  • Remote control switch
  • Included remote control magnetic switch
  • Easy cleaning drum canister rolls on swivel casters
  • Fully mobile with built-in casters
  • Unique vacuum equalizer built into collection drum for use with disposable plastic bags.


  • Motor: 1-1/2 HP, 110V/220V, single-phase, TEFC, 3450 RPM, prewired 110V
  • Airflow capacity: 775 CFM
  • Static pressure at rated CFM: 1.80"
  • Intake port: 6" with included 5" optional port
  • Impeller: 13-1/2"
  • Sound rating: 78–80 dB
  • Cartridge filter surface area: 48 square feet
  • Overall dimensions: 38-1/4" W x 23-1/4" D x 68" H
  • Approx. shipping weight: 288 lbs.

    220V Operation: 220V operation requires installation of a 220V conversion kit. For your own safety, all wiring procedures MUST be completed by an electrician or other qualified service personnel. See Owner’s Manual for details.

  • Show More... California Proposition 65 Warning

    Accessories and Related Items: View All

    You May Also Like:

    Customers who purchased this item also purchased:

    2 Customer Reviews (5 out of 5 stars): Sign in to write a review


    Nice unit, easy to assemble. Does a good job with filtration. Great suction on my 60" x 45" co2 laser. Holds the 1/4 plywood sheets down firm while extracting and filtering the fumes and fine dust.

    Excellent Dust Collector for the home shop 8/2/2016

    I purchaced this Cyclone to replace my 2HP Harbor Freight Dust collector. Man What a difference! I have my Tablesaw, Bandsaw and Jointer connected to it with 4" hoses and no gates and it sucks up every bit of dust and chips. I tried my planer on it too and it did not disappoint. I say about 99% of dust and chips goes to the 30 gallon collection drum. After each use I crank the filter paddles to clean the dust but there is none. I thought it must be broken but when i checked the collection drum it was all there. Check the machines and no accumulation. Love it, Love it, Love it!
