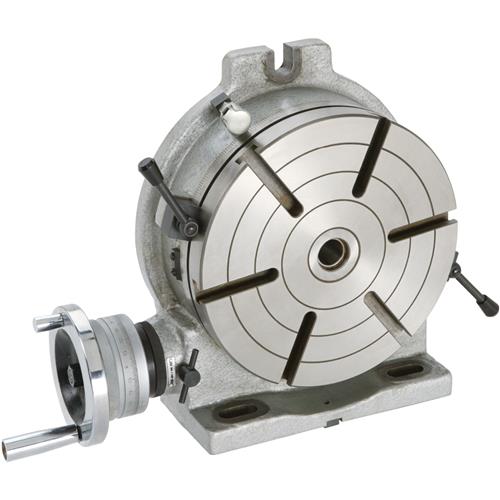

G9299 10" Horizontal/Vertical Rotary Table - Yuasa Type

10" Horizontal/Vertical Rotary Table - Yuasa Type

See larger image and other views
Price:$350.00
Freight:*$76.50
Your Price:**$426.50
Add to Cabana Add To CabanaWhat's This?
Customers who purchased this item also purchased:

G9295 Dividing Plates
$59.95
G1076 52 pc. Clamping Kit - 1/2" Bolt Size
$34.95
G1646 12 pc. Precision R-8 Collet Set
$69.95
Description
High precision, Yuasa type Rotary Table features extra deep coolant channel, dual positive action locks, very low profile, 10 second vernier scale, gear drive with oil immersion and satin chrome dials.

Specifications:

  • Clamping surface flatness (concave): 0.0006"
  • Cylindrical center bore concentricity: 0.0008"
  • Taper center bore concentricity: 0.0008"
  • Surface to base parallelism: 0.0008"
  • Surface to angle face squareness: 0.0004"
  • Surface to center slot squareness: 0.0008"
  • Overall height (horizontal): 4.330"
  • Height to center hole (vertical): 6.750"
  • Morse taper: #3
  • T-slot width: 0.465"
  • Approximate shipping weight: 117 lbs.

  • Size: 10"
  • Slots: 6
  • Center Hole: MT #3
