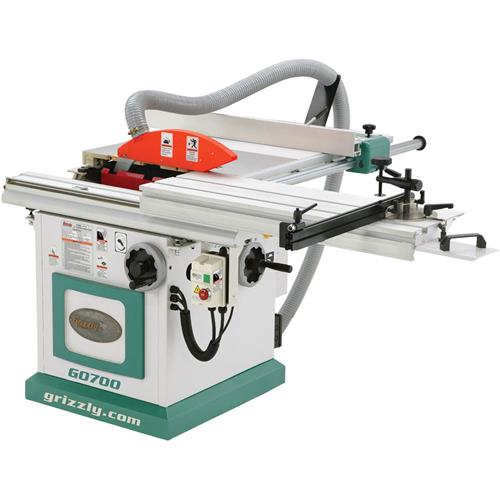

Grizzly G0700 - 10" Sliding Table Saw with Scoring Blade Arbor

Get all the features of a true sliding table saw, but in a footprint that’s sized for smaller shops. You’ll love the effortless sliding table for cross cutting, the reversespinning scoring blade that eliminates tear-out, the riving knife and blade guard with dust hose for added safety, and the miter gauge with adjustable flip-stop for repeat angle cutting. For standard ripping operations, just lock the sliding table in place and use the traditional rip fence. The extruded-aluminum rip fence is guided by a heavy cast iron frame and can be installed on its side when guiding thin stock. Why settle for a standard table saw when this one does it all? CSA certified meeting CSA C22.2 #105-1953 standards!

FEATURES:

Adjustable scoring blade ensures tear-out free cuts

Durable extruded-aluminum sliding table

Miter fence can be positioned at 45° right and left

Miter fence has flip-stop for repetitive cutting

Precision-ground cast iron main table

Quick clamp on sliding table

Main blade and scoring blade sold separately

Includes riving knife

Adjustable scoring blade kerf

Single lever locking fence

Fence rotates 90° for guiding thin stock

4" main dust port and 2-1/2" blade guard dust port

Underside of blade encapsulated in dust shroud for optimum dust extraction

SPECIFICATIONS:

Motor: 5 HP, 230V, single-phase, 19A

Main blade size: 10"

Main blade arbor: 5/8"

Main blade tilt: 0-45°

Main blade arbor speed: 4000 RPM

Depth of cut at 90°: 3-1/8"

Depth of cut at 45°: 2-1/4"

Scoring blade size: 3-1/8" (80mm)

Scoring blade arbor: 22mm

Scoring blade arbor speed: 8000 RPM

Scoring blade tilt: 0-45°

Sliding table size: 12-1/4" x 39-3/8"

Maximum rip capacity: 34"

Maximum sheet capacity without scoring blade: 39-3/8" x 27-1/2"

Maximum sheet capacity with scoring blade: 34" x 27-1/2"

Maximum dado width: 13/16"

Length of cross cut: 27-1/2"

Main table dimensions: 14-3/4" x 27"

Approximate shipping weight: 584 lbs
