Grizzly   |  Model: G9744Z2
10" x 18" 1.5 HP Metal-Cutting Bandsaw
Price: $3,295.00
Recently Added ×
You May Also Like
(5)

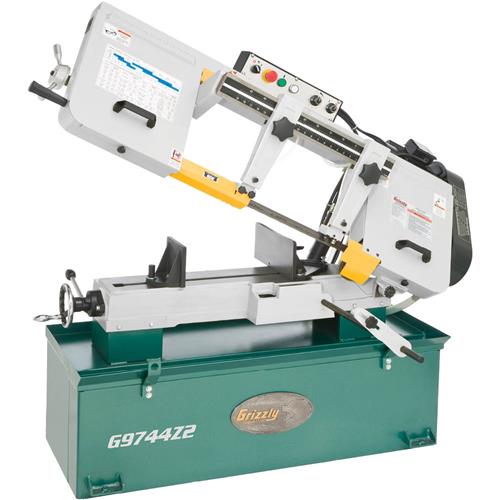

Grizzly G9744Z2 - 10" x 18" 1.5 HP Metal-Cutting Bandsaw

Model: G9744Z2
Buy Now!
Price:
Freight:  Freight
Tariff Fee:  Tariff Fee
Oversize:  Oversize
Total:
Monthly payments as low as . Learn More
We've taken our already great G9744Z Metal-Cutting Bandsaw and added a few extra features to offer you a truly outstanding Bandsaw. We've added a one-piece saw bow, deluxe blade tension hand wheel, deluxe Tru-lock vise system and easy access pulley cover for fast speed changes. You still get optimum control and accuracy with sliding ball bearing blade guides, work stop and hydraulic down feed. Round it out with a 1-1/2 gallon coolant system and chip tray and you've got a real metal-cutting workhorse.

Features:

  • Centralized control panel on top of saw bow
  • One-piece saw bow
  • Deluxe blade tension hand wheel
  • Deluxe Tru-lock vise system with absolute clamping force
  • Easy speed changes
  • Heavy-duty all steel, one piece base
  • Adjustable hydraulic down feed; just dial your feed rate on the control panel
  • Worm gear box has hardened and ground gears
  • Tru-lock vise for fast job changes
  • Miter cutting ability
  • Blade wheels have heavy-duty ball bearings
  • Magnetic safety switch
  • Automatic shut off
  • Adjustable blade guide system

Specifications:

  • Motor: 1-1/2 HP, 220V (only), single-phase, 1725 RPM
  • Blade size: 121-1/2" x 1"
  • Included blade size: 121-1/2" x 1" x 3/4 VP TPI (similar to Grizzly model H2309)
  • Acceptable blade widths: 1", 1-1/16"
  • Blade speeds 114, 196, 288, 377 FPM
  • Max. capacity circular @ 90°: 10"
  • Max. capacity rectangular @ 90°: 10" x 18"
  • Max. capacity circular @ ±45°: 6"
  • Max. capacity rectangular @ ±45°: 7" x 9-3/8"
  • Overall size: 67-3/4" L x 24-1/2" W x 41-1/2" H
  • Table size: 30" L x 6-1/2" W
  • Floor to vise height: 22-3/4"
  • Coolant capacity: 1-1/2 gallons
  • Base footprint: 47" x 21"
  • Approximate shipping weight: 760 lbs.
Show More... California Proposition 65 Warning

Accessories and Related Items: View All

You May Also Like:

Customers who purchased this item also purchased:

5 Customer Reviews (5 out of 5 stars): Sign in to write a review

Plus M
6/24/2018

Just finished using the saw when I wrote this. About 100 pieces cut today. Some 45's. I have worked as a machinist for 35 years in fairly large shops. The saw performs extremely smooth especially the hydraulic feed...The factory people did an excellent job adjusting the saw and it was ready to use right away...The vise is the best iv seen when it comes to changing angles quickly and holding angles near exact...

Geary H
4/29/2018

We already had 1 of these and it worked for our steel shop so well, we replaced another one with this model. Thank you

2/15/2018

This saw upped our production by 25% and made the guys in the shop a little happier.
