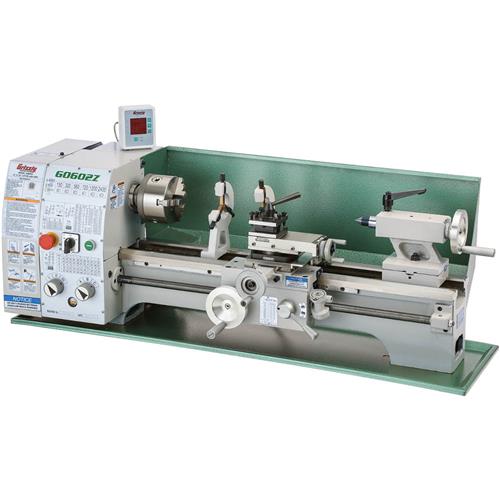

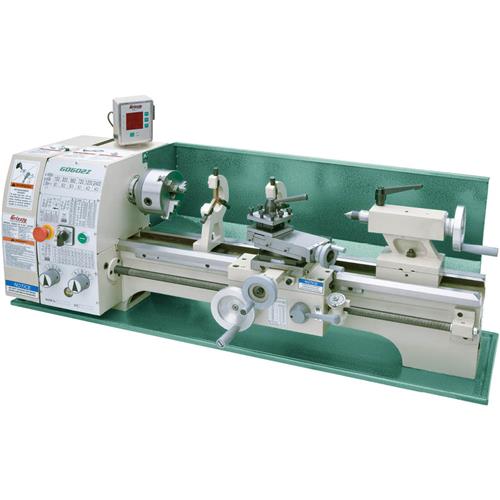

Grizzly G0602Z - 10" x 22" Benchtop Metal Lathe with DRO

Model: G0602Z
Buy Now!
Price:
Freight:  Freight
Oversize:  Oversize
Total:
Monthly payments as low as . Learn More
Our 10" x 22" Benchtop Metal Lathe sports generous capacity, a lot of thread ranges, a wider bed, and a larger chuck, yet it costs only a little more than our G4000. With features like a 1" spindle bore, 3/4"–12 TPI leadscrew and an MT#3 tailstock, you'll be able to turn some surprisingly hefty projects! If you're thinking of making parts for models, engines or even for repairs around the home or shop, take a good look at this lathe and the specs below.

Specifications:

  • Swing over bed: 9-1/2"
  • Swing over cross slide: 6-1/8"
  • Distance between centers: 22"
  • Spindle bore: 1" (25mm)
  • Spindle thread: 1-3/4" x 8 TPI
  • Spindle taper: MT#4
  • Motor: 1 HP, 110V, single-phase, 13.6A
  • Spindle speeds: 150, 300, 560, 720, 1200, 2400 RPM
  • Leadscrew: 3/4"–12 TPI
  • Compound travel: 3-1/2"
  • Cross slide travel: 6-1/2"
  • Carriage travel: 18-1/2"
  • Maximum tool size: 1/2"
  • Tailstock quill travel: 2-1/2"
  • Tailstock taper: MT#3
  • Number of longitudinal feeds: 9
  • Range of longitudinal feeds: 0.0025–0.0140 IPR
  • Number of inch threads: 33
  • Range of inch threads: 8–72 TPI (RH)
  • Number of metric threads 26
  • Range of metric threads: 0.25–3.50mm (RH only)
Standard Equipment:
  • • 5" 3-Jaw chuck with two sets of jaws • 6-1/2" 4-Jaw chuck with reversible jaws
  • 8" Faceplate
  • 4-Way tool post
  • Steady rest with 1/4"–2" capacity
  • Follow rest with 1/4"–2" capacity
  • MT#3 dead center
  • Oil-bath gearbox
  • Chip tray and backsplash
  • Toolbox with service tools
Show More... California Proposition 65 Warning

Accessories and Related Items: View All

You May Also Like:

Customers who purchased this item also purchased:

5 Customer Reviews (4.4 out of 5 stars): Sign in to write a review

Lonny R
4/8/2018

I've had the lathe for about a month now, overall I am very satisfied with it and will be making considerable more use of it as time goes by. Many of the reviews I have read concerning rough castings and poor finish simply don't pan out. I did take the saddle, tail stock, compound and the chuck apart and clean them thoroughly, the cosmoline preservative they use to coat everything simply needs to be thoroughly cleaned. My only real complaint is that the compound is not very solid - there are a number of web sites that provide plans for strengthening this area of the lathe and I plan to make those modifications. I also recommend adding a quick change tool post to the lathe early in the game. The four way tool post is a real pain to properly set up and tools installed in the fixture have to be shimmed, this makes setting up for a new job extremely tedious. Regardless these drawbacks I would definitely recommend this lathe, the price cannot be beat and all things considered it is a very solid little machine.

Albert B
Pretty Good Lathe 4/4/2018

Good lathe for the hobbyist, so don't expect professional-level performance. Holding .001" is not easy in spite of the DRO, etc. Design errors include extreme difficulty accessing the 4 fasteners holding the motor to the machine, which must be loosened to change the high speed belt. A lathe with a variable speed knob would be money well spent.

Mike V
Couldn't be happier. 3/20/2018

Bought my G0602Z lathe in February.
Excellent machine. Very impressed with the accuracy.Glad I opted for the DRO.
Next purchase will be a surface grinder to add to my home shop.
Bought the G0754 mill also.Another fine machine.

Jamie K
Fantastic Machine 9/8/2017

I haven't had this for very long, but I'm so impressed with the machine's performance so far. It's a lot of fun to use, but make no mistake, this is definitely a lathe that can handle some significant work. The DRO is great and Grizzly's customer service is second to none!
