Grizzly   |  Model: G0752
10" x 22" Variable-Speed Lathe
Price: $1,795.00
Recently Added ×
You May Also Like
(6)

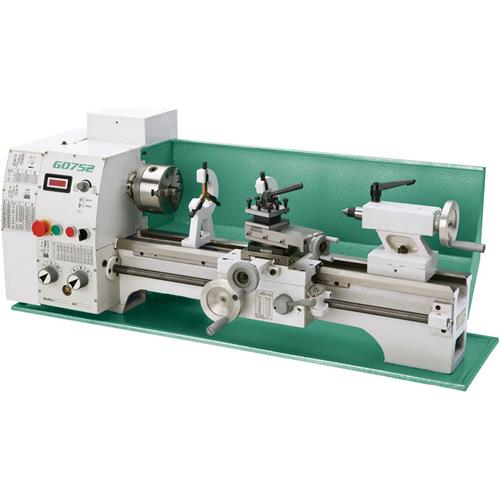

Grizzly G0752 - 10" x 22" Variable-Speed Lathe

Buy Now!
Price:
Freight:  Freight
Oversize:  Oversize
Total:
Monthly payments as low as . Learn More
The Model G0752 is a variable-speed version of our G0602 10" x 22" Bench Lathe. It shares the same features and accessories as the G0602, but is equipped with a digital RPM display on the headstock. It also has electronic variable-speed spindle control, which allows you to change spindle speeds with the simple turn of a dial—and while the lathe is still running! This feature eliminates the additional time it takes to stop the motor and then change gears or move levers around when changing spindle speeds. Even better, the fine degree of control allows you to set the optimum spindle speed for your feed speed and workpiece material, so that you can get the best finishes possible.

Specifications:

  • Swing over bed: 9-1/2"
  • Swing over cross slide: 6-1/8"
  • Distance between centers: 22"
  • Spindle bore: 1" (25mm)
  • Spindle thread: 1-3/4" x 8 TPI
  • Spindle taper: MT#4
  • Motor: 1 HP, 110V, 12A
  • Spindle speed range: Variable, 100–2000 RPM
  • Leadscrew: 3/4"–12 TPI
  • Compound travel: 3-1/2"
  • Cross-slide travel: 6-1/2"
  • Carriage travel: 18-1/2"
  • Maximum tool size: 1/2"
  • Tailstock quill travel: 2-1/2"
  • Tailstock taper: MT #3
  • Longitudinal feeds: (9) 0.0025–0.0140IPR
  • Inch threads: (33) 8–72 TPI
  • Metric threads: (26) 0.25–3.5mm
  • Overall dimensions: 50-1/2" W x 19-5/8" H x 22" D
  • Approximate shipping weight: 453 lbs.

Standard Equipment:

  • 5" 3-Jaw chuck with two sets of jaws
  • 6-1/2" 4-Jaw chuck with reversible jaws
  • 8" Faceplate
  • Steady rest with 1/4"–2" capacity
  • Follow rest with 1/4"–2" capacity
  • MT #3 dead center
  • 4-Way tool post
  • Chip tray and backsplash
  • Hardened & ground V-way bed
  • Oil-bath gearbox
  • Tool box with service tools
Note: The G9973 Stand is an optional accessory for this machine. Some modification is required, such as drilling holes in the stand, and mounting hardware is not included.
Show More...

Accessories and Related Items: View All

You May Also Like:

Customers who purchased this item also purchased:

6 Customer Reviews (4.7 out of 5 stars): Sign in to write a review

Decent Lathe
3/ 5stars

I bought this lathe a few months back and have used it on several small projects. I have made the tool rest modifications that are out there on you tube which helped a good bit. The original tool rest tends to flex a little. The only other issue is that the main spindle bearing seems to be already showing signs of wear. I oiled it per the instruction manual initially and did the required burn in procedure as well as oil it regularly but when I oil it the oil comes out on the face of the lathe and seems to have a slightly gritty feeling to it. I have my suspicions that the unit may not have been factory new. There were some paint scratches and the plastic coating on the front panel face had been peeled off already. As long as the bearing doesn't fail though I am good with the lathe. It works well for what I use it for.

5/ 5stars

I am very pleased with my G0752 purchase. With many years experience running lathes as a career I wanted a small lathe to use in my home shop for hobby/prototype work. I did a lot of online research before choosing this particular machine. It has the feel of a higher end lathe. I do miss the auto cross feed however. This was the sacrifice I made in order to afford the digital spindle speed control.

Above expectations
5/ 5stars

Very pleased with this machine. Easy to set up and after a good thorough cleaning it runs parts very nicely.

very nice lathe
5/ 5stars

bought this lathe about 4 months ago and then bought the stand a few months later when it came available.it is used in starter and alternator rebuilding. I use it to turn armatures and rotors. I have a grizzly lathe that is over 20 years old. it get used every day.these machines are indestructible.the variable speed in nice.this is a good price for this lathe. remember you can buy other lathes out there. but you cannot get parts for them.grizzly carries the parts.they still have parts for 20 year old lathe.

Production Floor Use
5/ 5stars

We purchased the G0752 to assist in the manufacture of small prototype parts & tools.
The shipment arrived a couple of days early, the crate was undamaged, and the machine was well secured to the pallet.
After initial evaluation & cleaning off the cosmoline it ran very smooth. At full speed, the loudest noise still came from the VFD cooling fans, nothing wrong with them, they just move a lot of air.
There was a lot of grit in the holes where the handles screw into the wheels, also in the T slot for the tool post. I didn't take the cross slide off the carriage, but I would be willing to bet that there is a lot of grit in there too. There was no grit on any of the sliding surfaces though, or I would've sent the machine right back to Grizzly as a 'received as damaged' item.
