Grizzly   |  Model: G0797
10" x 50" Variable-Speed Vertical Mill with Power Feed and DRO
Reg: $7,450.00
Price: $7,050.00
Recently Added ×
You May Also Like ×

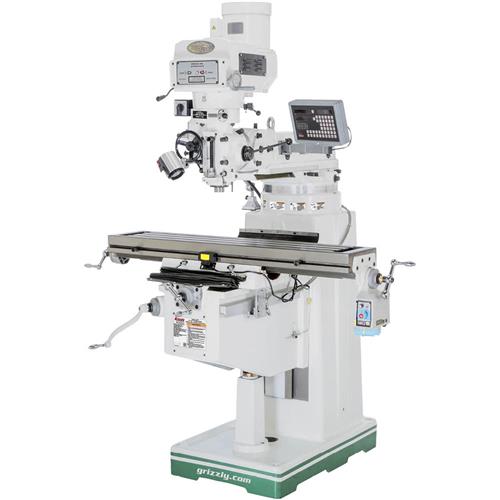

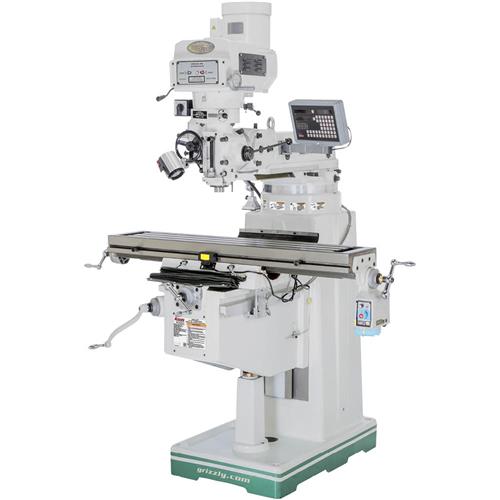

Grizzly G0797 - 10" x 50" Variable-Speed Vertical Mill with Power Feed and DRO

click to zoom

See this item in our 2016 Christmas Catalog!
23
See this item in our 2016 Main Catalog!
592
Showroom Pickup
Alternate Text
Specifications:
  • Motor: 3HP, 220V, 7.8A, 3-phase
  • Spindle taper: R-8
  • Spindle travel: 5"
  • T-slots: 3 @ 2-1/2" centers, 5/8" wide
  • Head ram travel: 18-1/2" (front to back)
  • Head tilt: 90° left & right, 45° front & back
  • Turret/column swivel: 360 degrees left/right
  • Max. distance spindle to table: 19-1/4"
  • Table travel (longitudinal): 30"
  • Table travel (across): 14"
  • Table travel (vertical): 15"
  • Table size: 10" x 50" x 4-1/8"
  • Spindle speed: Variable, 60-4200 RPM
  • Base footprint: 48" x 33"
  • Approximate shipping weight: 3021 lbs.
  • Please note: Due to this machine's weight, it cannot be delivered with our optional liftgate service
Features:
  • 2-Axis DRO
  • One-shot pump lubrication for table ways
  • Auto spindle stop with micro-adjustable stop
  • Auto spindle downfeed
  • Longitudinal table power feed
  • Hardened and precision-ground table surface
  • Chrome-plated, precision-ground quill
  • X- and Y-axis way covers
  • Forward and reverse spindle rotation
  • Halogen worklight
  • Built-in coolant tank in base compatible with optional aftermarket coolant systems
  • Includes service tools and toolbox
