South Bend   |  SKU: SB1002
10K - 28" Bench Lathe
Price: $3,095.00
Recently Added ×
You May Also Like

South Bend - 10K - 28" Bench Lathe

Buy Now!
Freight:  Freight
Oversize:  Oversize
Monthly payments as low as . Learn More
Sale price limited to stock on hand

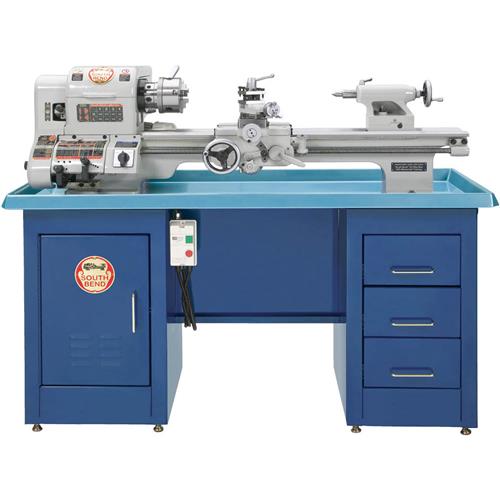

Designed from the ground up with meticulous attention to detail, this "new" 10K lathe has the traditional South Bend lines as well as many modern innovations. Some of its well thought-out features include a 1200 RPM 1 HP motor, D1-3 camlock spindle, serpentine multi-groove belt drive system with a Gates® belt, T-slotted cross slide, long 3.15" tailstock barrel, inch and metric threading ability and much, much more. South Bend's Signature three v-way bed is hardened and precision ground, and the 28" between centers handles most jobs with ease. A very popular lathe coveted by small shops! Optional SB1035 Stand shown not included.


  • Swing over bed: 9-3/4"
  • Distance between centers: 28"
  • Swing over cross slide: 5-1/2"
  • Width of bed: 5.9"
  • Cross slide travel: 4-7/8"
  • Compound slide travel: 2"
  • Spindle nose: D1-3 camlock
  • Spindle bore: 0.86"
  • Spindle taper: MT #3
  • Spindle speeds: (8) from 60 - 1200 RPM
  • Tailstock taper: MT #2
  • Tailstock travel: 3-1/8"
  • Tailstock barrel diameter: 1.18"
  • Inch thread range: 8 to 224 tpi (40 pitches)
  • Metric thread range: 0.5 to 3.5 mm (17 pitches)
  • Longitudinal feed range: 0.0014 to 0.0394 IPR
  • Cross feed range: 0.0004 to 0.0131 IPR
  • Number of feed selections: 16
  • Spindle motor size: 1 HP
  • Voltage: 110V/220V, single-phase, 60 Hz
  • Machine footprint: 47" x 12"
  • Approximate shipping weight: 656 lbs.

    Standard Equipment:

  • Signature South Bend three V-way bed
  • 5" 3-Jaw scroll chuck
  • 4-way tool post
  • Center
  • Tool kit
  • SB1035 stand (pictured) not included
  • Show More... California Proposition 65 Warning

    Accessories and Related Items: View All

    You May Also Like:

    Customers who purchased this item also purchased:

    3 Customer Reviews (5 out of 5 stars): Sign in to write a review

    John R
    Hi quality lathe 3/8/2018

    I bought this lathe 1 year ago. It is a fine machine that holds close tolerances!

    I rejected the 1st lathe because of shipping was dropped. Grizzly was VERY prompt in replacing the lathe.

    Excellent customer service. The 2nd had a damaged starter motor capacitor(shipping damage again). Grizzly promptly replaced it.

    Great Product but needs an independent 4 jaw chuck available 6/2/2017

    Great lathe great tolerances, sorry they are discontinued.
