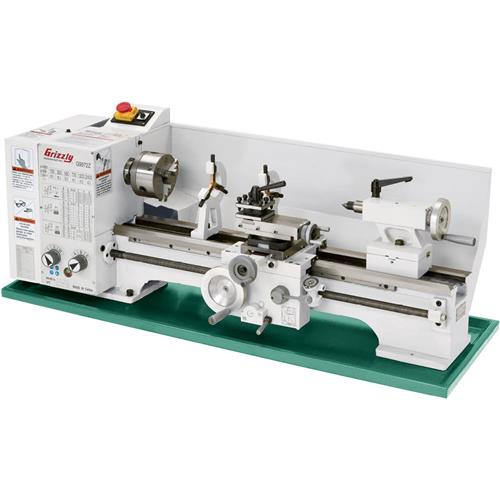

Grizzly G9972Z - 11" x 26" Bench Lathe w/ Gearbox

click to zoom

    See this item in our 2015 Annual Catalog!
    574
    Model: G9972Z
    Showroom Pickup

    This is another great starter metal lathe with more capacity than typical benchtop lathes! This specially designed machine is an outstanding value and able to take on light duty jobs requiring a 10-5/8" swing, a 1" spindle bore and 26" between centers. And with a 1 HP motor, you’ll be able to make quick work of even the most challenging jobs. This is an awesome value and a lot of lathe for a hobby machinist! Feeds and threads to the left only.

    Standard Equipment:

  • 5" 3-jaw chuck with two sets of jaws
  • 6-1/2" 4-jaw chuck with reversible jaws
  • Steady rest
  • Follow rest
  • MT #3 & MT #4 Dead centers
  • 4-way tool post
  • Faceplate
  • Tool box & tool kit
  • Change gears

    Specifications:

  • Swing over bed: 10-5/8"
  • Swing over cross slide: 6-3/8"
  • Distance between centers: 26"
  • Spindle bore: 1"
  • Spindle nose taper: MT #4
  • Motor: 1 HP, 110V, single-phase
  • Number of speeds: 6
  • Range of speeds: 150, 300, 560, 720, 1200, 2400 RPM
  • Lead screw: 3/4" x 8 TPI
  • Compound travel: 3-1/2"
  • Cross slide travel: 7"
  • Carriage travel: 23"
  • Maximum tool size: 1/2" x 1/2"
  • Tailstock barrel travel: 2-1/2"
  • Tailstock barrel taper: MT #3
  • Spindle thread: 1-3/4" x 8 TPI
  • Number of longitudinal feeds: 12
  • Range of longitudinal feeds: 0.0022–0.0150 IPR
  • Number of inch threads: 24 Range of inch threads: 8–56 TPI
  • Number of metric threads: 10
  • Range of metric threads: 0.5–3.0mm
  • Overall dimensions: 23" W x 51" L x 19" H
  • Approximate shipping weight: 559 lbs.

    Comes with chip tray and splash guard!

  • :

    :
