Description

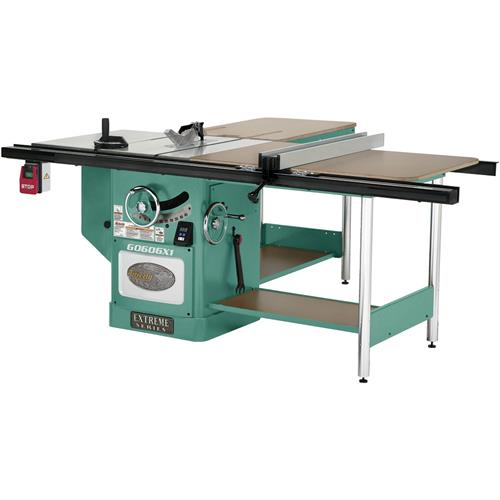

This Extreme Table Saw is ideally suited to handling large panels without blinking an eye. A right-hand & rear mounted extension table supports the widest panels before during & after the cut, & the large rail mounted switch control won't get lost under the panel. Other features include ample storage shelves, a user friendly blade guard, a riving knife, a digital readout for blade angle & an efficient dust management system that includes an internal dust port & sloped cabinet floor that directs saw dust into the 4" dust port. Enjoy all of the innovative features this big capacity saw has to offer. CSA certified meeting CSA C22.2 #71.2-08, CSA C22.2 #105-1953, and UL 987 standards.

SPECIFICATIONS

Motor: 7-1/2 HP, 220V/440V*, 3-phase

Amps 19.5/10

Blade tilt Left

Table height from floor: 35-3/4"

Table size with extension 30-3/4" x 78-3/4"

Arbor speed: 3600RPM

Arbor size: 1"

Maximum dado width; 3/4"

Maximum depth of cut @ 90°: 4"

Maximum depth cut @ 45°: 2-3/4"

Maximum rip capacity: 52"

Distance from front of table to blade at maximum cut: 11-1/2"

Distance from front of table to center of blade: 17-1/4"

Overall dimensions: 75" W x 44" D x 42-1/2" H

Approximate shipping weight: 861 lbs.

FEATURES

Precision ground cast iron table

Cast iron trunnions

3/8" x 3/4" T-slots & miter gauge

4" dust port

Smooth and quiet serpentine belt power transfer

Steel cabinet

Hinged motor cover

Right hand and rear extension tables

Magnetic switch with thermal overload protection

Digital readout for bevel angle

Quick change between riving knife and splitter guard

Includes 12" blade

*If you require 440 volt operation, Grizzly must convert your machine at the time of purchase to maintain the machine's warranty. A $250 fee will be added to your order. Please allow extra shipping time for the conversion. If you need more information please contact technical service
