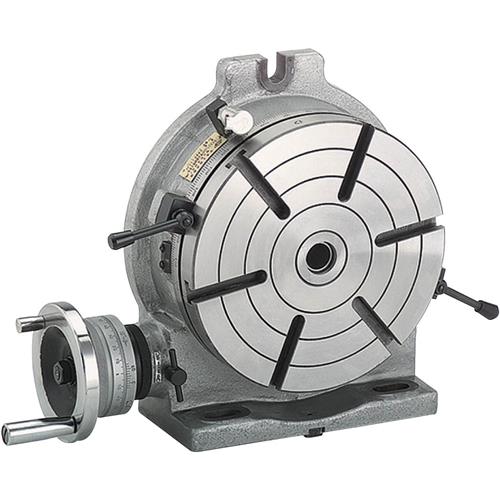

brand logo 12" Horizontal/Vertical Rotary Table - Yuasa Type

click to zoom

      Manual - PDF Purchase Parts
      SKU: G9300
      MPN: G9300
      Showroom Pickup
      High precision, Yuasa type Rotary Table features extra deep coolant channels, dual positive action locks, very low profile, 10 second vernier scale, gear drive with oil immersion and satin chrome dials.

      Specifications:

      • Clamping surface flatness (concave): 0.0006"
      • Cylindrical center bore concentricity: 0.0008"
      • Taper center bore concentricity: 0.0008"
      • Surface to base parallelism: 0.0008"
      • Surface to angle face squareness: 0.0004"
      • Surface to center slot squareness: 0.0008"
      • Overall height (horizontal): 4.750"
      • Height to center hole (vertical): 8.250"
      • Morse taper: #4
      • T-slot width: 0.545"
      • Approximate shipping weight: 168 lbs.

      • Size: 12"
      • Slots: 6
      • Center Hole: MT #4
