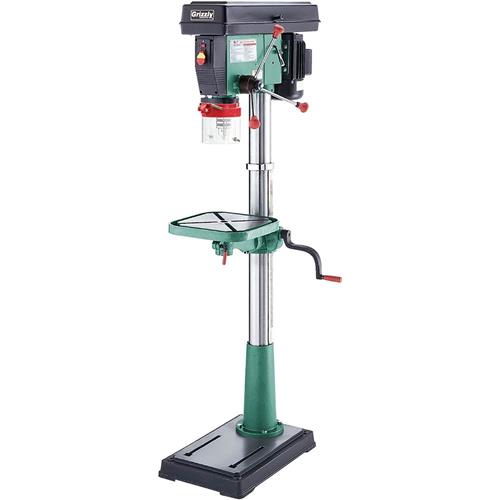

Grizzly   |  Model: G7947
12 Speed 17" Floor Drill Press
Price: $599.95
Recently Added ×
You May Also Like
(7)

Grizzly G7947 - 12 Speed 17" Floor Drill Press

Buy Now!
Price:
Freight:  Freight
Oversize:  Oversize
Total:
Monthly payments as low as . Learn More
If you use your drill press commercially and need power and capacity, this is one drill press you should look at seriously. Note the 4-3/4" spindle travel!

Specifications:

  • Motor: 1 HP, single-phase, 110V/220V, prewired 110V
  • Overall height: 70"
  • Swing: 17"
  • Spindle travel: 4-3/4"
  • Number of speeds: 12 (210, 310, 400, 440, 630, 670, 1260, 1430, 1650, 2050, 2350, 3300 RPM)
  • Quill flange/collar dia: 3.623"
  • Drill chuck: 1/64"-5/8"
  • Spindle taper: MT #3
  • Drilling capacity: 1" steel
  • Table T-slot size: 5/8" wide
  • Precision-ground cast iron table
  • Table size: 13-5/8" x 13-5/8".
  • Table swing: 360 degrees
  • Table tilts: 90 degrees in both directions
  • Footprint: 27-1/2" x 19-1/4"
  • Approx. shipping weight: 283 lbs.
  • Includes built-in light (bulb not included)
Show More...

Accessories and Related Items: View All

You May Also Like:

Customers who purchased this item also purchased:

7 Customer Reviews (4.4 out of 5 stars): Sign in to write a review

Perfect with a few modifications
5/ 5stars

This is drill press is almost perfect. I upgraded a couple of things so now I really love it.

First was the quill stop. Standard threaded rod with 2 nuts. l couldn't find wrenches that would exactly fit the nuts so it was a pain to adjust.

I bought a 1/2 X 20 threaded rod from Zoro. Only a few dollars. Then I removed the old rod. It doesn't thread in just fits in. I drilled out the hole to 1/2" with a standard metal drill bit. Then I bought 2 1/2" X 20 nuts to secure it. Finally, I bought the quick set quill stop from Grizzly. They have an expensive one and a less expensive one. Works perfectly.

There is a lever on the right side to secure the motor after belt adjustments. I tried to use if for the first time and there was a clang inside. Apparently whatever is supposed to push against the motor fell off the lever. I called Grizzly. I was told there was no way to get in there and fix it and that it wasn't needed anyway. I haven't has any problems with slippage.

I also replaced the standard chuck with a keyless one which is much better and holds just as tight.

3/ 5stars

Sent the wrong bolts to bolt the unit to the base , unessssary running around to find bolts to mount

This Drill Press Rocks!
5/ 5stars

Great size and Power/torque. Was a Breeze to setup.
This is another great value product from Grizzly!

Great medium sized drill press
5/ 5stars

This was a present given to my dad and he has thoroughly enjoyed this product. It is truly a beginning industrial-strength style drill press… I would recommend this to anyone.

Great Product
5/ 5stars

This drill press is impressive. It's "Heavy Duty" construction allows usage even in the most demanding applications. I am very pleased with the ease of speed adjustments as well as the ease of table adjustments. The table light is a great feature as well. It allows safer use due to increased visibility while drilling. This machine is with out question, a very high quality product. I am happy to own it !!
