Grizzly   |  Model: G7944
12 Speed Heavy-Duty 14" Floor Drill Press
Price: $485.00
Recently Added ×
You May Also Like
(6)

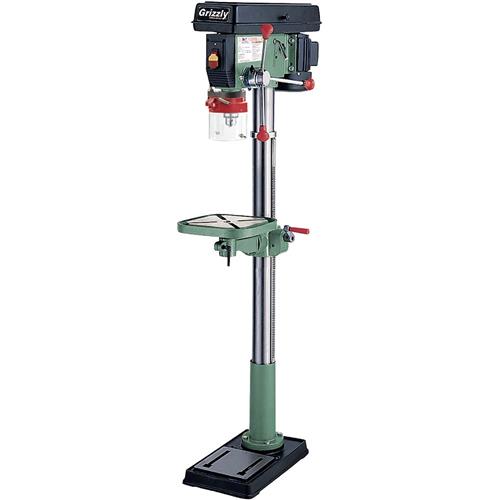

Grizzly G7944 - 12 Speed Heavy-Duty 14" Floor Drill Press

Buy Now!
Price:
Freight:  Freight
Oversize:  Oversize
Total:
Monthly payments as low as . Learn More
This heavy-duty floor model drill press is the mainstay in any shop with 12 speeds and powerful 3/4 HP motor. Features crank handle operated rack and pinion vertical table movement, cushioned grip quill handles, built-in light, and the table has lock levers and a coolant trough. A very popular machine!

Specifications:

  • Motor: 3/4 HP, single-phase, 120V, 9A
  • Footprint: 18" x 11"
  • Overall height: 64"
  • Spindle travel: 3-1/4"
  • Number of speeds: 12 (140, 260, 320, 380, 480, 540, 980, 1160, 1510, 1650, 2180, 3050 RPM)
  • Collar size: 2.595"
  • Drill chuck: 3/64"-5/8"
  • Spindle taper: MT #2
  • Swing: 14"
  • Drilling capacity: 3/4" steel
  • Precision-ground cast iron table
  • Table size: 11-3/8" x 11-3/8"
  • Table swing: 360 Deg.
  • Table tilts: 90 Deg. left and right
  • Approximate shipping weight: 156 lbs.
  • Show More... California Proposition 65 Warning

    Accessories and Related Items: View All

    You May Also Like:

    Customers who purchased this item also purchased:

    6 Customer Reviews (5 out of 5 stars): Sign in to write a review

    Thomas M
    The G7944 is a really nice drill press! 4/26/2018

    For the money it will be hard to beat this drill press, and over all I am very pleased with it. I did a lot of research before deciding on the G7944 and for me the biggest factor
    was the rpm range, which starts at 140rpm and goes up to 3050rpm it also has a 3/4hp motor, I plan to use this primarily as a metal working drill press. It's worked good so far
    on mild steel and brass and I've made a few things already.

    My particular drill press came well packaged and banded to a skid and was in perfect condition. I did a couple of things to mine to tweak it a little, first I cleaned up the T slots and
    stoned the table so to remove any burrs or high spots, second I tightened the quill nut a little to remove any play in the quill and greased it really good. The drill press runs fairly
    quite, the only thing that caused any vibration noise was the top cover over the belts, and I fixed that with some plastic tubing over the top lid latch, now it's all smooth no vibration. It is a well built press and I'm looking forward to making some stuff on it along with my G7052 lathe, and eventually I will be buying a small milling machine.

    So like I said for the money this is the drill press to beat, I would buy it again and recommend it.

    9/2/2017

    Great drill press for the money. The table adjustment could be smoother but not a big deal. Happy with the purchase.

    wilfred L
    6/24/2017

    I bought my equivalent Grizzly drill press, probably 25 yrs ago. I came to this site to refresh myself on belt adjustment. I love my drill press. I am now retired as a furniture maker, but did my most demanding drill job ever today! This machine is not built to high specs, but it gets the job done. Mine still works perfectly & I have never had to repair it.

    Today's job was boring a 3" thru hole in a 5" diameter round of Lignum Vitae, described as...
    "The wood was once very important for applications requiring a material with its extraordinary combination of strength, toughness, and density."
    It took 2 hours, but the drill press held up.

    Great Drill! 1/26/2017

    Bought this for my husband for Christmas! He loves it!!! Delivery was flawless
