Grizzly   |  Model: G4002
12" x 24" Gear-Head, Cam Lock Spindle, Gap Bed Lathe
Price: $2,750.00
Recently Added ×
You May Also Like ×

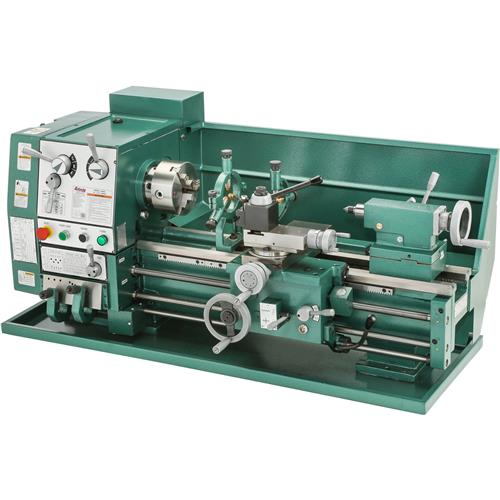

Grizzly G4002 - 12" x 24" Gear-Head, Cam Lock Spindle, Gap Bed Lathe

click to zoom

    See this item in our 2016 Main Catalog!
    554

    Showroom Availability

    Missouri In Stock
    Washington Temporarily Out of Stock
    Showroom Pickup
    This metal lathe is an incredible value. Produced with precision slides and ways, the G4002 will keep up with the most demanding machining job!

    Features:

    • Removable gap bed allows turnings up to 17" in diameter
    • Nine spindle speeds - ranging from 70 to 1400 RPM
    • Easy-to-use lever controls
    • Hardened and ground cast iron bed
    • Cuts 4-112 Standard TPI and 0.2-4.5 Metric
    • Full length splash guard
    • On/off/reverse switch on carriage

    Standard Equipment:

    • 6" 3-Jaw chuck w/2 sets of jaws
    • 8" 4-Jaw chuck w/reversible jaws
    • 10" Faceplate
    • Steady rest
    • Follow rest
    • Quick-change tool post w/holder
    • 4-Piece insert tool holder set
    • Set of seven change gears
    • Dead center MT#3 HSS tip
    • Dead center MT#3 carbide tip
    • Live center MT#3
    • 1/2" Drill chuck w/MT#3 arbor
    • Spindle sleeve MT#5/MT#3
    • Oil can
    • Toolbox

    Specifications:

    • Swing over bed: 12"
    • Swing over gap: 17"
    • Swing over cross slide: 7"
    • Distance between centers: 24"
    • Bed width: 7-1/4"
    • Spindle bore: 1.417"
    • Taper of spindle bore: MT#5
    • Spindle: Camlock D1-4
    • Cross slide travel: 6-1/4"
    • Compound travel: 3-1/4"
    • Tailstock barrel taper: MT#3
    • Tailstock barrel travel: 4"
    • Diameter of tailstock barrel: 1-9/16"
    • Number of speeds: 9
    • Range of speeds: 70, 200, 220, 270, 360, 600, 800, 1000, 1400 RPM
    • Motor: 2 HP, single-phase, 220 Volt, 8.5 amps, 60 Hz, 1725 RPM
    • Height w/o stand: 23"
    • Height w/ stand: 52"
    • Length w/ stand: 53"
    • Width of stand: 26"
    • Approx. shipping weight: 1004 lbs.

    :

    :

    1 Customer Review (5 out of 5 stars): Sign in to write a review

    mr. wonderful
    Reno, Nevada
    Great machine for the money 4/22/2016

    For the price, this is a GREAT deal. Worked perfect right out of the box. Did threading on it first day and it will do all my projects just fine. The spindle speeds could be a little more in line though, would like one between 70 and 200. But it's still a great machine. Great customer support.
