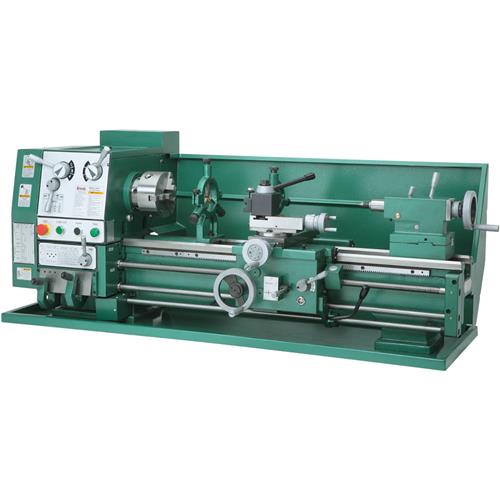

G4003 12" x 36" Gear-Head, Cam Lock Spindle, Gap Bed Lathe

12" x 36" Gear-Head, Cam Lock Spindle, Gap Bed Lathe

See larger image and other views
Price:$2,295.00
Freight:*$257.50
Your Price:**$2,552.50
Add to Cabana Add To CabanaWhat's This?
Accessories:

G9847 Chucking Reamer Set
$139.95
H5930 4 pc. Center Drill Set 60°
$6.95
H5931 4 pc. Center Drill Set 82°
$6.95
See all accessories...
Customers who purchased this item also purchased:

G4005 Lathe Stand for G4003
$229.95
G5704 Parting Tool Holder - Series 200
$29.95
G7040 Carbide Insert for Steel, LH - For use w/ G7029, G7031 or G7032
$10.50
Description
An exceptional metal lathe for less than twenty two hundred dollars. A gear-head spindle lets you select speeds without having to fuss with belts or pulleys. Shifting gears is as easy as switching a couple of front-mounted levers. Quick change gearbox makes thread cutting selection fast and efficient. Outstanding quality at a very reasonable price.

Standard Equipment:

  • 6" 3-jaw chuck with two sets of jaws
  • 8" 4-jaw chuck with reversible jaws
  • Steady rest
  • Follow rest
  • 10" face plate
  • Tool Box
  • Quick change tool post with one tool holder
  • 2 (1 carbide tipped) Dead center MT#3
  • 1 Live Center: MT#3
  • Set of six change gears
  • 1/2" chuck w/ MT#3 arbor

Features:

  • Removable gap bed allows turnings up to 17" in diameter
  • Nine spindle speeds - ranging from 70 to 1,400 RPM
  • Easy-to-use lever controls
  • Hardened and ground cast iron bed
  • Cuts 4-112 Standard TPI and .2-4.5 Metric
  • Full length splash guard
  • On-off-reverse switch on carriage

Specifications:

  • Swing over bed: 12"
  • Swing over gap: 17"
  • Swing over cross slide: 7"
  • Distance between centers: 36"
  • Bed width: 7-1/4"
  • Spindle bore: 1-7/16"
  • Taper of spindle bore: MT#5
  • Spindle: Cam Lock D1-4
  • Cross slide travel: 6-1/4"
  • Compound travel: 3-1/4"
  • Tailstock barrel taper: MT#3
  • Tailstock barrel travel: 4"
  • Number of speeds: 9
  • Range of speeds: 70, 200, 220, 270, 360, 600, 800, 1000, 1400 RPM
  • Motor: 2 HP, single phase, 220V 9 amps, 60 HZ, 1725 RPM
  • Height w/o stand: 23"
  • Height w/ stand: 54-1/2"
  • Length w/ stand: 61"
  • Width of stand: 26"
  • Approx. shipping weight: 1040 lbs.

Free 4-Pc. Insert Tool Holder Set



Grizzly Catalog See pages 556, and 633 of our 2008 Grizzly Catalog!
Metalworking Catalog See page 36 of our 2008 Metalworking Catalog!
