Grizzly   |  Model: G4003
12" x 36" Gear-Head, Cam Lock Spindle, Gap Bed Lathe
Price: $2,850.00
Recently Added ×
You May Also Like ×

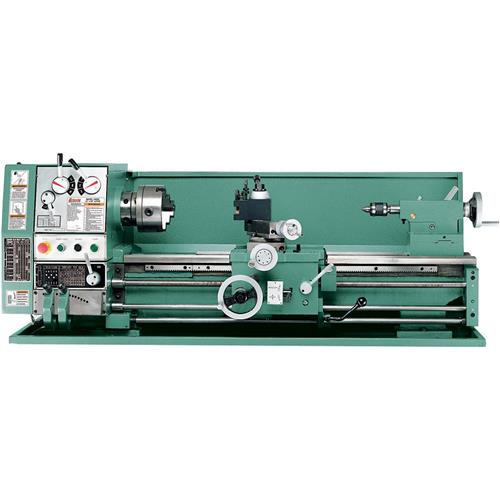

Grizzly G4003 - 12" x 36" Gear-Head, Cam Lock Spindle, Gap Bed Lathe

click to zoom

    See this item in our 2016 Main Catalog!
    555 556 558

    Showroom Availability

    Missouri Temporarily Out of Stock
    Washington Temporarily Out of Stock
    Showroom Pickup
    An exceptional valued metal lathe. A gear-head spindle lets you select speeds without having to fuss with belts or pulleys. Shifting gears is as easy as switching a couple of front-mounted levers. Quick change gearbox makes thread cutting selection fast and efficient. Outstanding quality at a very reasonable price.

    Standard Equipment:

    • 6" 3-Jaw chuck w/2 sets of jaws
    • 8" 4-Jaw chuck w/reversible jaws
    • 10" Faceplate
    • Steady rest
    • Follow rest
    • Quick-change tool post with one tool holder
    • Two MT#3 dead centers (1 carbide-tipped)
    • MT#3 live center
    • Set of seven change gears
    • 1/2" Chuck with MT#3 arbor
    • Toolbox

    Features:

    • Removable gap bed allows turnings up to 17" in diameter
    • Nine spindle speeds - ranging from 70 to 1400 RPM
    • Easy-to-use lever controls
    • Hardened and ground cast iron bed
    • Cuts 4-112 Standard TPI and 0.2-4.5 Metric threads
    • Full length splash guard
    • Spindle on/off reverse switch on carriage
    • Compatible with G7028, G7029, G7030, & G7031, tool holders

    Specifications:

    • Swing over bed: 12"
    • Swing over gap: 17"
    • Swing over cross slide: 7"
    • Distance between centers: 36"
    • Bed width: 7-1/4"
    • Spindle bore: 1.417"
    • Taper of spindle bore: MT#5
    • Spindle: Cam Lock D1-4
    • Cross slide travel: 6-1/4"
    • Compound travel: 3-1/4"
    • Tailstock barrel taper: MT#3
    • Tailstock barrel travel: 4"
    • Tailstock barrel diameter: 1-9/16"
    • Number of speeds: 9
    • Range of speeds: 70, 200, 220, 270, 360, 600, 800, 1000, 1400 RPM
    • Motor: 2 HP, single phase, 220V 8.5 amps, 60 HZ, 1725 RPM
    • Height w/o stand: 23"
    • Height w/ stand: 52"
    • Length w/ stand: 61"
    • Width of stand: 26"
    • Approx. shipping weight: 1020 lbs.

    Free 4-Pc. Insert Tool Holder Set, including:

    • G7028 Lathe Tool Holder - Right Hand
    • G7029 Lathe Tool Holder - Left Hand
    • G7030 Threading Tool Holder
    • G7031 Boring Tool Holder

      :

      :
