Grizzly   |  Model: G8146Z
15-3/4" VS Vertical Metal-Cutting Bandsaw with Inverter
Price: $3,625.00
Recently Added ×
You May Also Like

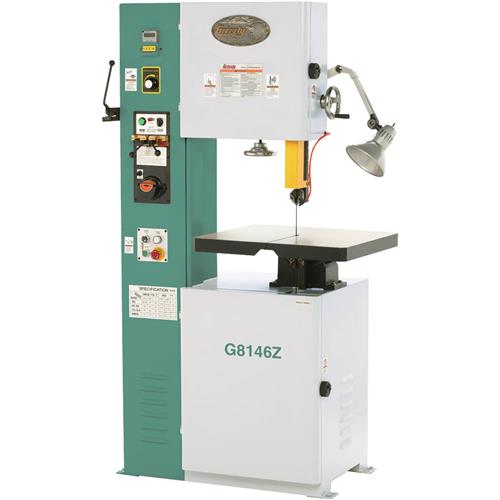

Grizzly G8146Z - 15-3/4" VS Vertical Metal-Cutting Bandsaw with Inverter

click to zoom

See this item in our 2017 Main Catalog!
688
Showroom Pickup
This versatile bandsaw allows intricate cutting of aluminum or brass to tool steel. Features a blade welding station which includes a cutter, welder, annealer and a grinder. Ideal for making inside cuts and quick repairs.

Features:

  • Variable speeds range from 105–2100 FPM
  • Blade welding station includes cutter, welder, annealer and grinder
  • Left, right table tilting control
  • Upper and lower blade guides
  • Integrated chip pan
  • Work light
  • Wheel brush

Specifications:

  • Main motor: 2 HP, 220V, 3-phase, 1725 RPM with single-phase inverter
  • Grinder motor: 1/8 HP, 220V, single-phase
  • Power source: 220V, single-phase, 60 Hz
  • Maximum cutting height: 10-1/4"
  • Throat capacity: 15-3/4"
  • Blade length range: 133"–136"
  • Included blade size: 134" x 3/8" x 10 TPI (similar to Grizzly model G8816)
  • Blade size range: 1/8"–3/4"
  • Blade speed: Variable, 105–2100 FPM
  • Electric welder: 4.2 KVA
  • Table tilt: 45° right, 15° left
  • Floor to table height: 38"
  • Table size: 21-11/16" x 23-5/8"
  • Overall dimensions: 36-3/8" W x 71-7/8" H x 19-1/8" D
  • Approximate shipping weight: 694 lbs.
