Grizzly   |  Model: G0784
15" Heavy-Duty Floor Drill Press
Price: $1,555.00
Recently Added ×
You May Also Like

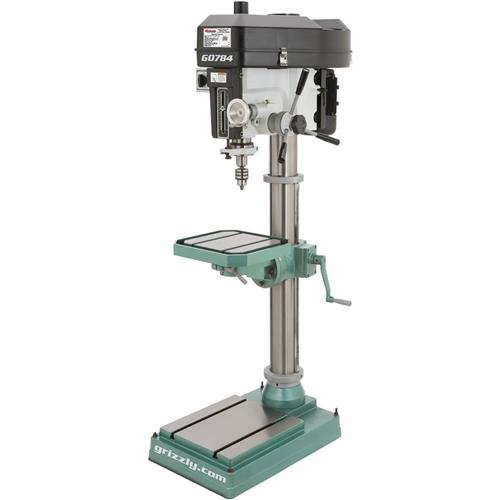

Grizzly G0784 - 15" Heavy-Duty Floor Drill Press

click to zoom

See this item in our 2017 Main Catalog!
132
Buy Now!
Price:
Freight:
Oversize:
Total:
Monthly payments as low as . Learn More
This heavy-duty drill press provides the precision and power your shop needs to tackle the most demanding jobs. Outfitted with a 2 HP motor, 12 speeds (adjustable via V-belts), R-8 spindle taper, 15" of swing, fine downfeed control (with micrometer collar in increments of 0.01"), and a 14" x 15" precision-ground cast iron table, you can see why we are excited to add this drill press to our lineup. The table features rack-and-pinion mounts to allow for 360 degrees of rotation, 60 degree tilt (left and right), 23-1/2" of vertical travel, and two 1/2" T-slots to allow for exact positioning of your workpiece. Wanting to make sure that every angle is covered, we've equipped the head with the same rack-and-pinion elevation controls as the table—adjustable 7-13/16" vertically, and capable of 360 degree rotation around the column. Finally, the precision-ground work surface on the base contains two more 1/2" T-slots, ensuring that every surface can be put to use.

Features:

  • Solid cast iron construction
  • Fine downfeed control with 0.01" increments and zero set
  • 360 degree table positioning around column
  • 360 degree head positioning around column
  • Base has precision-ground, cast iron work surface with two 1/2" T-slots
  • Forward/reverse switch
Specifications:
  • Motor: 2 HP, 220V, single-phase, 1720 RPM, 8.6A
  • Swing: 15"
  • Drill chuck: 1/64"–1/2"
  • Drilling capacity: 1-1/8" mild steel
  • Spindle taper: R-8
  • Spindle travel: 5-1/8"
  • Maximum movement of head: 7-13/16"
  • Number of speeds: 12 (140, 219, 263, 317, 413, 475, 819, 1075, 1238, 1450, 1770, 2436 RPM)
  • Precision-ground cast iron table
  • Table size: 14" x 15"
  • Table swing: 360 degrees
  • Table tilt: 60 degrees left & right
  • Table T-slots: 1/2" (2)
  • Vertical table travel: 23-1/2"
  • Column diameter: 4-1/2"
  • Overall height: 67"
  • Footprint: 18" W x 26" D
  • Approximate shipping weight: 772 lbs.
