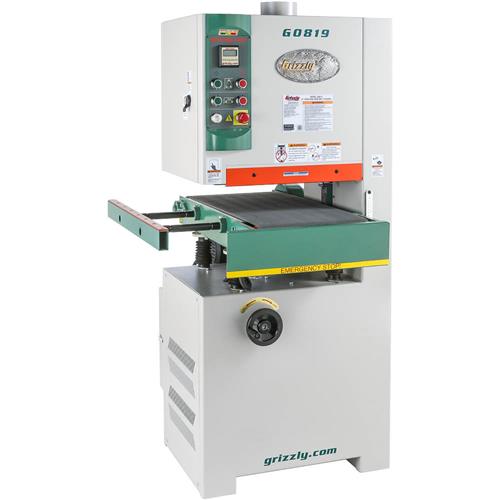

If you are looking for the features and construction of some of our bigger machines but lack the space or necessity for their size, then look no further. The G0819 packs a lot of machine into a small amount of real estate. With a footprint of 29" x 23-1/2", this heavy-duty sander is capable of sanding a 30" wide workpiece in two passes. There is even an adjustable side support that slides out from the side of the machine, eliminating the need for aftermarket supports. Other quality features such as an amp meter, separate table feed motor, and pneumatically-controlled belt oscillation make this nothing short of a high-caliber machine.

Specifications:

  • Sanding belt motor: 5 HP, 220V, single-phase, 1725 RPM, 30 A
  • Conveyor motor: 1/2 HP, 220V, single-phase, 2.8A
  • Air requirement: 57-75 PSI, 2 CFM
  • Sanding belt size: 16" x 48"
  • Surface speed of sanding belt: 2050 CFM
  • Maximum board width: 15" single pass, 30" double pass
  • Maximum board thickness: 5-1/2"
  • Minimum board length: 12"
  • Conveyor speed rate: 16.4, 23, 32.8 FPM
  • Overall size: 32-1/2"W x 35"D x 61-3/4"H
  • Approximate shipping weight: 930 lbs.
Features:
  • Independent conveyor and sanding belt motor control
  • Pneumatic belt tensioning
  • Pneumatic belt tracking
  • Two rubber pressure rollers
  • Amp meter
  • Safety shut-off bar
  • Inch/metric thickness scale
  • Disc brake for emergency stops
  • 5" dust port
  • 1-3/4" x 15-3/8" graphite platen
Show More...

Accessories and Related Items: View All

You May Also Like:

Customers who purchased this item also purchased:

1 Customer Review (5 out of 5 stars): Sign in to write a review

Valuable machine
5/ 5stars

This sander is a great entry level machine and has a small footprint for those with small shops with limited space. I haven't had much experience with it sanding anything wider than 15" but for what I have done it's a sure time saver on those long flat surfaces. Belt changes are very easy so being laisy about changing grits when needed isn't an issue. I have noticed that you definitely want to take small passes because depending on what type of wood you're sanding and how wide the board you can easily overload this machine if your not paying attention to how many turns of the hand wheel and keeping an eye on the ampmeter is a must. If you are realistic about how much you can take off, and stick to relatively small passes this machine will not disappoint you. Also keeping an eye on your belt clean will help things. Great machine for the money. Thanks again Grizzly!
