Grizzly   |  Model: G0810
16" Drill Press with Cross-Slide Table and Power Feed
Price: $2,450.00
Recently Added ×
You May Also Like

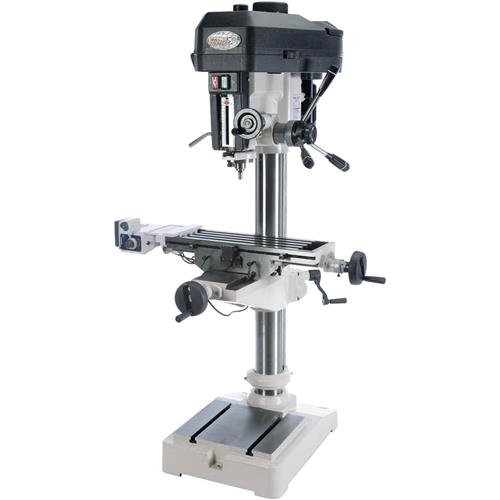

Grizzly G0810 - 16" Drill Press with Cross-Slide Table and Power Feed

click to zoom

See this item in our 2017 Main Catalog!
134

Showroom Availability

Missouri Temporarily Out of Stock
Washington Temporarily Out of Stock
Showroom Pickup
Precision matters, and if you need to drill holes in a straight line or equally spaced apart, you'll love having a drill press with a built-in X/Y table that is even equipped with graduated dials. Our G0810 16" Drill Press provides easy adjustability with both the X and Y-axis - with 14-7/8" of X-axis travel and 7" of Y-axis travel - and a convenient X-axis power feed. Set the depth stop, and use the coarse downfeed for fast production drilling, or switch over to the fine-downfeed handwheel for precision control up or down along the generous 5-1/8" spindle travel. A good drill press also starts from the ground up, and this one offers the foundation you need with a thick, heavy-cast 26" x 19" base and beefed up 4-1/2" column for rigidity and stability you can count on. You would be hard pressed to find a drill press anywhere else with the functionality or capability of this one at such a great price!

Specifications:

  • Motor: 1.5HP, 220V, single-phase, 1720 RPM, 11.5A
  • Swing: 16"
  • Max distance spindle-to-table: 19-7/8"
  • Table size: 23-1/16"L x 7-1/2"W x 1-3/4"H
  • Vertical table travel: 20"
  • Table swivel (left/right): 360°
  • Spindle travel: 5-1/8"
  • Number of spindle speeds: 12
  • Spindle speeds: 150, 225, 255, 350, 400, 500, 850, 1200, 1500, 1600, 2300, 3000 RPM
  • Spindle taper: MT#3
  • Quill diameter: 2.95"
  • Drilling capacity mild steel: 1-1/4"
  • T-slot width: 1/2" (4 on table, 2 on base)
  • Overall dimensions: 42"W x 65"H x 39-1/2"D
  • Footprint: 26"L x 19"W
  • Approximate shipping weight: 685 lb.
Features:
    MT#3 spindle taper
  • 12 spindle speeds of 150-3000 RPM
  • 360° table rotation around column
  • 5-1/4" of spindle travel
  • Longitudinal power feed on X/Y-axis table with independent power supply
  • Fine-downfeed handwheel adjustment
