Description

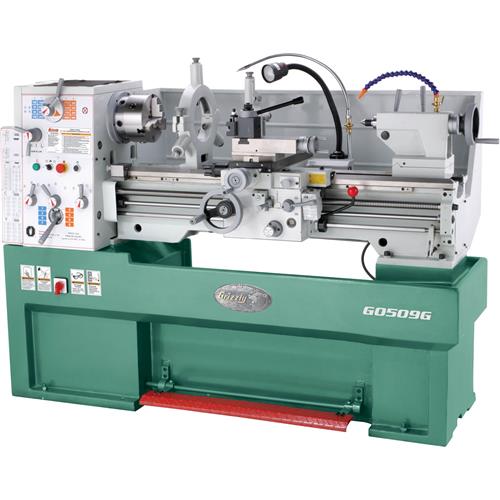

This was a really fun project! I was talking to my gunsmith one day and he mentioned that he was frustrated with the lathe he had and why was it that no one made a lathe specifically for gunsmithing. I asked him what kind of features he would like to see. He gave me a "laundry" list that included super high precision spindle bearings with high precision ground gears, a tailstock that was precisely tuned at the factory to be less than a thousandth of an inch higher than the spindle center with a tailstock lock that could accommodate a torque wrench (the tailstock center can be torqued down to bring it to exact center with the spindle center), two coolant nozzles for chambering, longer tailstock for precise barrel support, support screws for outboard part of the spindle, etc.

Standard Equipment:

• 8" 3-Jaw chuck
• 12" 4-Jaw chuck
• 14" Face plate
• Steady rest
• Follow rest
• Coolant system
• Halogen light
• Full length splash guard
• Dual inch/metric dials
• Quick change tool post
• Jog button & emergency stop
• #4 to 6 Morse taper spindle nose sleeve
• Center, center sleeve, service tools, manual and toolbox

Features:

• Precision ground and hardened V-bed is made of Meehanite casting
• Totally enclosed universal gearbox allows cutting of Inch, Metric, Whitworth, Modular and Diametral threads
• Headstock gears run in an oil bath and are hardened and precision ground for smooth, quiet and vibration free operation
• 1/8 HP, .45 Amp coolant motor

Specifications:

• Motor 3 - 4 HP, 220V, 3-phase, 2 speed
• Swing over bed 16"
• Swing over gap 22"
• Swing over cross slide 10"
• Distance between centers 40"
• Spindle nose D1-6 camlock
• Spindle nose taper MT#6
• Spindle bore 2"
• Tailstock barrel taper MT#4
• Tailstock barrel travel 4-3/4"
• Cross slide travel 8-1/2"
• Compound travel 5-1/2"
• Number of speeds 16
• Speed range 45-1800 RPM
• Range of threads (inches) 45 @ 2-72 TPI
• Range of threads (metric) 39 @ 0.2-14 mm
• Diametrical pitch range 21 @ 8-44 DP
• Modular pitch range 18 @ .3-3.5 MP
• Width of bed 10"
• Approximate shipping weight 3245 lbs.

See pages 562, and 563 of our 2008 Grizzly Catalog!
