16" x 40" 3-Phase Gunsmith's Metal Lathe
Reg: $7,995.00
Price: $7,750.00
Recently Added ×
You May Also Like ×

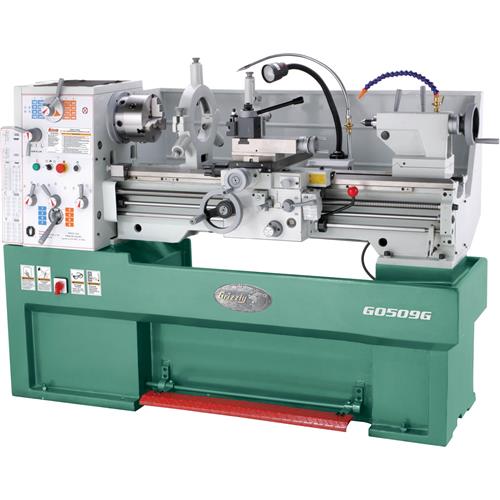

Grizzly G0509G - 16" x 40" 3-Phase Gunsmith's Metal Lathe

click to zoom

    See this item in our 2015 Annual Catalog!
    510 584
    See this item in our 2015 Spring Catalog!
    Model: G0509G
    Showroom Pickup
    This was a really fun project! I was talking to my gunsmith one day and he mentioned that he was frustrated with the lathe he had and that no one made a lathe specifically for gunsmithing. I asked him what kind of features he would like to see. He gave me a "laundry" list that included super high precision spindle bearings with high precision ground gears, a tailstock that was precisely tuned at the factory with a lock that could accommodate a torque wrench (the tailstock center can be torqued down to bring it to exact center with the spindle center), two coolant nozzles for chambering, a longer tailstock for precise barrel support, support screws for outboard part of the spindle, etc...To make a long story short, we have incorporated all those features to come up with the first lathe ever to be designed specifically for gunsmithing. Check it out!

    Standard Equipment:

    • 8" 3-Jaw chuck
    • 12" 4-Jaw chuck
    • 14" Faceplate
    • Steady rest
    • Follow rest
    • Coolant system
    • Halogen light
    • Full length splash guard
    • Dual inch/metric dials
    • Quick change tool post
    • Jog button & emergency stop
    • #4 to 6 Morse taper sleeve
    • Centers, service tools, manual and toolbox


    • Precision ground and hardened V-way bed
    • Totally enclosed universal gearbox allows cutting of inch, metric, whitworth, modular and diametrical threads
    • Headstock gears run in an oil bath and are hardened and precision ground for smooth, quiet and vibration free operation
    • 1/8 HP, 0.45A coolant motor


    • Motor: 4 HP, 220V, 3-phase, 2 speed
    • Swing over bed: 16"
    • Swing over gap: 22"
    • Swing over cross slide: 10"
    • Distance between centers: 40"
    • Spindle nose: D1-6 camlock
    • Spindle nose taper: MT#6
    • Spindle bore: 2"
    • Tailstock barrel taper: MT#4
    • Tailstock barrel travel: 4-3/4"
    • Cross slide travel: 8-1/2"
    • Compound travel: 5-1/2"
    • Number of speeds: 16
    • Speed range: 45-1800 RPM
    • Range of threads (inches): 45 @ 2-72 TPI
    • Range of threads (metric): 39 @ 0.2-14 mm
    • Diametrical pitch range: 21 @ 8-44 DP
    • Modular pitch range: 18 @ 0.3-3.5 MP
    • Width of bed: 10"
    • Approximate shipping weight: 3300 lbs.
