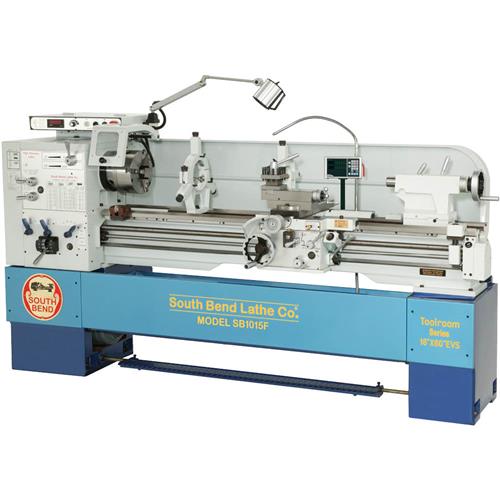

South Bend 16" x 60" Lathe 440V with DRO

click to zoom

    See this item in our 2015 Annual Catalog!
    SKU: SB1015F
    MPN: SB1015F
    Showroom Pickup
    Features:

    • Two headstock gear speed ranges supply high torque in low range from 20 to 400 RPM and constant power from 400 to 2500 RPM in high range
    • Precision hardened and ground headstock gears run in an oil bath for super smooth, quiet and vibration free operation.
    • D1-6 camlock spindle has large 2-1/16" hole through spindle
    • The heavy-duty bed incorporates South Bend Lathe's signature 3 V-way and 1 flat way design, which assures precision alignment of the headstock, tailstock and saddle
    • The ways are induction hardened and precision ground to perfection
    • Meehanite bed castings.
    • Two T-slots are machined into the rear of the cross slide for mounting tooling or fixtures
    • Removable chip tray for ease of clean-up.
    • Top quality Japanese NSK bearings.
    • One shot lubrication in carriage.
    • 6" Tailstock barrel travel.
    • Variable speed controlled by simple dial.
    • Digital spindle speed indicator.
    • Yaskawa frequency drive.
    • Tailstock with inch/metric graduated quill and tang knock-out slot
    • Centralized lubrication pump for bed-ways and cross slide
    • Quick action full length emergency foot brake
    • Dual-reading inch/metric dials on the cross feed and compound
    • Full length, rear mounted splash guard
    • Lockable main disconnect switch
    • Fagor DRO

    Specifications:

    • Swing over bed: 16.14"
    • Distance between centers: 60"
    • Swing over cross slide: 10.375"
    • Swing over gap: 22.95"
    • Spindle nose to gap (max.): 10.2"
    • Cross slide travel: 9.25"
    • Compound slide travel: 5.1"
    • Spindle nose: D1-6 Camlock
    • Spindle bore: 2.0625"
    • Taper inside spindle: MT#6
    • Spindle speed: Variable from 20 to 2500 RPM
    • RPM ranges: 20 to 400, 400 to 2500
    • Inch threads: (45) 2 to 72 TPI
    • Metric threads: (39) 0.2 to 14mm
    • Modular threads: (18) 0.3 to 3.5
    • Diametral threads: (21) 8 to 44
    • Longitudinal feed: 0.002 to 0.067 IPR
    • Cross feed: 0.001 to 0.034 IPR
    • Number of feed selections: 17
    • Tailstock barrel diameter: 2.047"
    • Tailstock quill travel: 6"
    • Tailstock taper: MT#4
    • Spindle motor: 7.5 HP
    • Voltage: 440V, 3-phase
    • Coolant motor: 1/8 HP
    • Footprint: 19-1/2" x 101-7/8"
    • Approximate shipping weight: 3652 lbs.

    Standard Equipment:

    • 9" 3-Jaw scroll chuck
    • 10" 4-Jaw independent chuck
    • 12" faceplate
    • Steady rest
    • Follow rest
    • 4 way tool post
    • Halogen lamp
    • Complete coolant system
    • Turret micrometer stop
    • Two Morse taper dead centers
    • Single saddle stop
    • Thread dial indicator
    • Leveling bolts
    • USA written parts/instruction manual
    • Tool box & tool kit

    Optional Equipment:

    • SB1269 Taper Attachment
    • SB1270 Collet
    • Attachment for 5-C Collets

    :

    :
