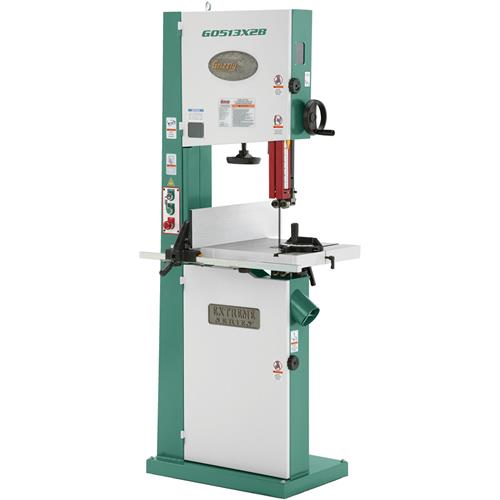

Grizzly G0513X2B - 17" 2 HP Extreme-Series Bandsaw w/ Cast Iron Trunnion & Brake
click to zoom
tap to zoom
Free shipping within the Contiguous United States.
Sales of this outlet item are limited to quantity on hand.
Free shipping within the Contiguous United States.
Sales of this outlet item are limited to quantity on hand.
CSA certified to CSA C22.2 #71.2-10, CSA C22.2 #105-1953, and UL 987-7th standards!
- Motor: 2 HP, 220V, single-phase, TEFC capacitor start induction, 60 Hz, 1725 RPM, 8.7 Amps
- Power transfer: Belt drive
- Precision-ground cast-iron table
- Table size: 23-5/8" x 17-1/4" x 1-1/2" thick
- Table tilt: 5° left, 45° right
- Floor to table height: 37-1/2"
- Cutting capacity/throat: 16-1/4" left of blade
- Maximum cutting height: 12"
- Blade size: 131-1/2" long
- Blade sizes available: 1/8" - 1" wide
- 2 blade speeds: 1700 and 3500 FPM
- Wheels: computer-balanced cast-iron with polyurethane tires
- Wheel covers: pre-formed steel
- Blade guides: ball bearing with full enclosure protection
- Bearings: sealed and permanently lubricated
- Overall size: 73" H x 32" W x 32" D
- Footprint: 27" L x 17-3/4" W x 2-1/2" H
- Approximate shipping weight: 446 lbs.
- Deluxe cast-iron fence with extruded aluminum re-saw fence
- Includes miter gauge
- Two 4" dust ports
- Quick-change blade release/ tensioner
- Blade tension indicator
- Micro-adjusting geared table
- Blade height scale measurement
- Blade tracking window
- Includes 1/2" 6-TPI hook blade
- Motor and blade stop in under 3 seconds after power is turned off
- Cast-iron table trunnions for greater stability
- Rack and pinion upper blade guide height adjustment
Accessories and Related Items:
You May Also Like:
Customers who purchased this item also purchased:
10 Customer Reviews (5 out of 5 stars): Sign in to write a review
I believe I have a good deal of experience with band saws: 25 year teaching wood shop on the junior high and high school level and at least at least that much time with a small light duty 13 inch band saw in my home shop. My band saw is the most used machine in my shop and I felt it was time to upgrade. I picked the Grizzly G0513X2B for the features it had: electronic motor brake, 220v 2hp motor, balanced cast iron wheels, cast iron trunnion and fence, and roller guides. The saw is very nicely finished with powder coated steel body and with a lifting eye on the top, I was able to lift it off the shipping pallet with my engine crane, nice touch. I really like this saw, I use my band saw on wood and sometimes aluminum and it exceeds my expectations. Today I am ordering the parts necessary to connect it to my saw dust collector, and a few more band saw blades from Grizzly. I love this band saw, and highly recommend it.
I waited a long time to order this machine.
Ive had it over a month and have used it many times. It exceeds my expectations and makes me very happy. Im sure it will last many years. Well made and very strong. Thanks Grizzly.
I am very pleased with the quality of this saw. It is very heavy with all the cast iron. I really like the double bearing guides and the overall craftsmanship of the product. I've worn out cheaper saws but this one should last me the rest of my life. Great job Grizzly.
I've had this bandsaw for almost 2 years now and it still impresses me with it's performance. I got the added foot brake; which is really not needed, the motor brake works plenty fast. Cutting with a Carter blade Stabilizer and using 1/4 inch blade, it's almost like a giant jig saw. Very accurate and dead nuts square/plumb cuts. Same thing with resaw, I've resawn 12 inch pine, 6 inch cherry/oak with no problems what so-ever. Very pleased with my purchase!
Very happy with the Bandsaw.. Works very well and handles small blades well. Our business primarily uses the Bandsaw. And we have been very happy with the operation and smoothness of the cutting blade. It was easy to assemble, good intructions. We were happy to get the wheeled base it sat on for ease of movement in the shop.
So far my bandsaw has performed very well. I am looking for to resealing so 4" oak, walnut and cherry wood I have been drying for over two years.
Solid, no shaking / vibrations, very quiet (at least to me). Looks good, and runs better. First 'real' bandsaw, and is going to be the most used tool in the shop I can tell already.
We are very happy. Machine came damaged in the crate. They sent the replacement parts right away and we were up and running. I would buy again.
I have been a Grizzly customer for over 16 years and have always been satisfied with the quality of your machines. Recently, I decided to upgrade my bandsaw from a G1073, that I purchased in 1996 to a G0513X2B to have greater resaw capacity. You have truly outdone yourself with the features and especially the quality of this fine machine. I truly believe at any price you can't buy a better machine. I presently have 5 other Grizzly machines in my shop and are completely satisfied with their performance. Keep up the good work.
Common Questions and Answers about the G0513X2B:
What is the advantage of having double ball-bearing blade guides over singles?
Double ball-bearing guides don't provide any advantages for 1/2" or smaller blades, but they do provide a much greater level of support for 3/4" and wider blades. This is important if you're planning on doing a lot of resawing or other straight cutting where a high degree of accuracy is needed.
How does the motor brake work?
Inside the motor is a magnetic braking system that can quickly stop the motor rotation in as little as 3 seconds. The brake is electrically-activated each time the motor is turned OFF.
What is the benefit of having cast-iron trunnions over aluminum trunnions?
Cast-iron trunnions give the table a more solid, robust support system, allowing it to better resist any flexing or twisting that may occur from really heavy workpieces being set on the table, especially on the outside ends of the table around the blade slot.
Can this saw be rewired for 110V?
No. This saw will only operate on a 220V power supply.
What is the benefit of having a machine equipped with a magnetic switch?
A magnetic switch offers a couple benefits beyond a typical switch. First, a magnetic switch is equipped with an overload relay that protects the motor from thermal breakdown that occurs if the motor is pushed beyond its limits. Second, in the event of a power outage, tripped circuit breaker, or blown electrical panel fuse, a magnetic switch will not automatically restart the motor when the power supply is restored.
General Questions and Answers:
What are the pros and cons of Cast Aluminum versus Cast Iron Wheels?
The heavier mass and weight of cast-iron wheels reduces vibrations and creates a flywheel-effect, which helps the blade maintain a consistent speed during heavy cuts and when resawing. The drawbacks to this added weight and mass are that it requires more energy from the motor to get the wheels and blade up to speed; and unless the saw is equipped with a brake, it also takes longer for the wheels to come to a stop after the saw is turned off. Aluminum wheels, on the other hand, are much lighter and require less time and energy to get up to speed and bring to a stop, which is why they are ideal for many hobby saws and those that will mainly be used for general-purpose rip cuts and crosscuts, such as with 4/4 (1") or thinner stock.
What are the differences between ball bearing, block, and disc (a.k.a. "Euro style") guide blocks?
The main differences between blade guide types can be boiled down to four factors: (1) amount/quality of support, (2) amount of blade friction created from that support, (3) ease of set-up and adjustment, and (4) durability and maintenance frequency. Ball-bearing guides offer the best all-around balance of these four factors. Although they don't provide as much contact area for support as block or disc guides, they do maintain constant contact with the blade without greatly increasing friction. They are also the easiest to set up and tend to be the most durable. Disc guides provide the highest amount of contact area for support, but as with guide blocks, they must be positioned 0.004" away from the blade, which requires some type of gauge to be used for proper set up. Whereas some disc guides are fixed, similar to block guides, our Euro-Style disc guides spin with blade contact, which greatly reduces friction and the need for regular resurfacing. Block guides offer excellent support, but unless they're made from specialized materials to reduce wear or friction, they tend to fall behind the other guide types in all other categories.
Can a metal bandsaw cut wood or vice versa?
The proper cutting speed for the majority of ferrous metals is under 300 FPM. The proper cutting speed for the majority of wood cuts is over 3000 FPM. Trying to cut metals on a wood bandsaw--at speeds 10 times faster than they should be--is dangerous and will likely result in a broken blade, damage to the bandsaw, and a really horrible cut. Cutting wood on a metal bandsaw is possible, but it would be tedious and slow, and likely would not produce a decent quality of cut. In addition, bandsaw blades for cutting wood are designed much differently than bandsaw blades for cutting metal. With that said, there are some soft, non-ferrous metals (such as aluminum) that can be cut at around 1500 FPM (if using the correct blade type). Although some of our wood bandsaws operate at approximately this same speed, the other components of these saws weren't designed to handle the metal chips and swarf that would be produced by the cut, which would likely result in minor damage to the machine and void the warranty. The bottom line is this: Always buy the right machine for the job!
Can I still use my bandsaw without connecting it to a dust collector?
Yes, this is possible, but we don't recommend it. Without using a dust collector, the dust will quickly pile up in and around your machine, resulting in additional cleaning time later. Besides making a mess, fine dust can be harmful to your respiratory system. It is a better choice to connect your bandsaw to a properly designed dust collection system that at least pulls the recommended minimum CFM from each dust port on the machine.
Which saw is best for resawing?
The key specs for resawing are the maximum cutting height and a larger motor size. Due to the amount of material being cut at one time, resawing puts a lot more strain on the motor than other types of cuts, so generally speaking, the more power the better. If you're using the proper blade type (a hook-type blade with few TPI) and a modest feed speed, you can get by making the occasional rip cut using a 1 HP-2 HP motor. Otherwise, if you plan on making regular resawing cuts, you'll get the best results with a 3 HP or larger motor.
What type of blade do I need for resawing?
Generally speaking, you'll want to use a wide blade (1/2" or larger) with "Hook" style teeth (or "Positive Claw" on Timberwolf blades) and a low number of teeth per inch (TPI). A wide blade helps ensure cuts are straight and the Hook style teeth have large gullets for removing material as the blade passes through the workpiece.
My bandsaw blade came with a tag on it that said "Recommended for cutting wood or soft non-ferrous metal." Does this mean I can cut metal with my wood bandsaw?
Just because the blade is recommended for both wood and soft, non-ferrous metal (e.g. aluminum, copper, etc.), it doesn't mean your wood bandsaw is suitable for cutting both types of material. It is important to keep in mind that the blade you bought may also be used on other types of bandsaws, such as our G0640X or G0621X, which are specially designed to cut both wood and metal.
How do I know what type of blade I should buy?
Blade choice is typically determined by the type and purpose of cut, the hardness and thickness of wood, and the desired trade-offs between cutting speed vs. cutting quality. In general, a wider blade is preferred for cutting straight lines because the blade tends to wander less, and a narrower blade is preferred for cutting curves because it has a much tighter minimum cutting radius. The two main types of blade teeth are "Hook" and "Raker". Hook teeth tend to cut faster and leave rougher results, while Raker teeth tend to cut slower and leave smoother results. There are additional types of teeth, such as Skip, Positive Claw, or AS-S, that are essentially modified versions of the Hook or Raker tooth shapes, but with slight changes to the cutting angle, gullet-to-tooth ratio, tooth set, etc. to provide unique advantages for special types of cuts.
What is the purpose of the pin that fits in the blade slot opening at the end of the table?
All bandsaw tables are inherently weaker on the outside half of the table. This is due to the slotted opening that allows the blade to pass through the table during blade changes. The table pin helps reinforce the two sides of the table around this slot, so they remain aligned with each other and keep the table flat. For this reason, it is extremely important to always keep the table pin firmly installed, unless you're changing blades.
