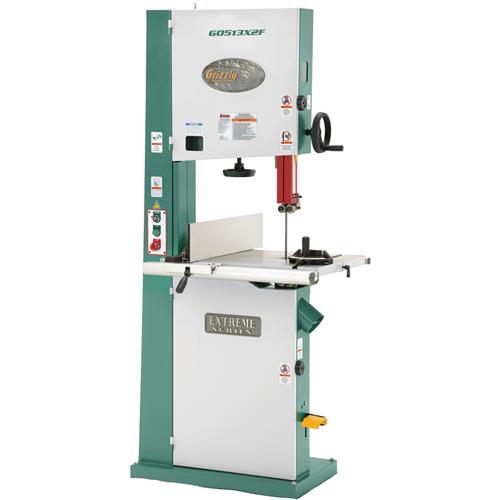

Grizzly G0513X2F - 17" 2 HP Extreme-Series Bandsaw with Cast-Iron Trunnion & Foot Brake
click to zoom
tap to zoom
Free shipping within the Contiguous United States.
Sales of this outlet item are limited to quantity on hand.
Free shipping within the Contiguous United States.
Sales of this outlet item are limited to quantity on hand.
Grizzly is proud to offer this full-featured Extreme 17" Heavy-duty Bandsaw with cast-iron wheels. This 2 HP motor powers through wood with a maximum cutting capacity of 12" height and a 16-1/4" throat which is plenty for most applications. Features like the deluxe fence, extra-wide cast-iron table, heavy-duty miter gauge, dual 4" dust ports, micro-adjusting geared table, and double ball-bearing blade guides are usually found on machines costing much more. And, the ISO 9001 factory designation assures high quality standards.
Note: To be able to run this machine at 110V, part number P0513X2F244 is required.
- Motor: 2 HP, 110V/220V, single-phase, TEFC capacitor start induction, 60 Hz, 1725 RPM, prewired to 220V
- Amps: 20A at 110V, 10A at 220V
- Power transfer: Belt drive
- Precision-ground cast-iron table
- Table size: 23-5/8" x 17-1/4" x 1-1/2" thick
- Table tilt: 5° left, 45° right
- Floor to table height: 37-1/2"
- Cutting capacity/throat: 16-1/4" left of blade
- Maximum cutting height: 12"
- Blade size: 131-1/2" long
- Blade sizes available: 1/8" – 1" wide
- 2 blade speeds: 1700 and 3500 FPM
- Wheels: computer-balanced cast-iron with polyurethane tires
- Wheel covers: pre-formed steel
- Blade guides: ball bearing with full enclosure protection
- Bearings: sealed and permanently lubricated
- Overall size: 73" H x 32" W x 32" D
- Footprint: 27" L x 17-3/4" W x 2-1/2" H
- Approximate shipping weight: 434 lbs.
- Deluxe cast-iron fence with extruded aluminum re-saw fence
- Includes miter gauge
- Two 4" dust ports
- Quick-change blade release/tensioner
- Blade tension indicator
- Micro-adjusting geared table
- Blade height scale measurement
- Blade tracking window
- Includes 1/2" 6-TPI hook blade
- Cast-iron table trunnions for greater stability
- Rack and pinion upper blade guide height adjustment
Accessories and Related Items:
You May Also Like:
Customers who purchased this item also purchased:
3 Customer Reviews (4 out of 5 stars): Sign in to write a review
I'm happy the my purchase and I still feel this unit is the best value out there. The individual components are strong and I feel will last me for a long time. Out of the box will definitely require the owner to shim this and that to straighten everything up. Not a big deal for me and I consider the effort worth the savings. My biggest disappointments are:
Noisey upper wheel which I cannot figure out where the noise is coming from
Not a big fan of their fence, scale and scale magnifier. I will definitely replace with an aftermarket fence.
From what I've read and based on my searches, you can not buy zero clearance blade inserts which makes me sad.
Anyway, in spite of some shortcomings, I'd still purchase this unit again if I had to do it all over again.
I ordered this saw on a weekend from the Washington State Grizzly warehouse. It arrived at my Idaho address the following Wednesday morning in perfect condition. After a few days I finally got time to run some 2" walnut planks through it that had been stored in my shed for a couple years. I have to say I was very happy with the way the saw handled the thick walnut planks. It didn't even breathe hard! For fun I resawed an 11" wide plank into a couple of 1" boards. It was amazing how quickly and easily the saw cut through it. I have to say when I ordered the saw I also ordered a Timberwolf 1" resaw blade from Grizzly. When I set up the saw I set it up using that blade. I didn't even use the blade that came with the saw. I am a hobbyist woodworker and can't imagine doing anything that this saw wouldn't handle. I started with a 14" Taiwanese band saw that I will keep with a 1/4" blade for the curvy cuts and keep the Grizzly for resawing and cutting the tops off of memory boxes that I make. I had also looked at and was ready to buy another top-rated (and expensive!) band saw but was concerned about the number of average to poor reviews. When I started reading reviews on the Grizzly I don't think I found ANY that were not at least 4 stars. That's basically why I opted for this saw and so far I have zero complaints!
On Tuesday, October 16th, 2012, my home burnt to the ground. An apparent robbery ended with the thieves lighting fire to the wood finished building in an attempt to cover their tracks. All of the cedar on the inside walls was resawn by my Grizzly G0513X2F. As you can see, despite two floors worth of home and belongings falling onto the Grizzly bandsaw, it was the only thing left standing. Even the 130lbs per foot I-beam crumpled in the heat before your tool.
I just wanted to say that I'll be happy to go Grizzly again.
Common Questions and Answers about the G0513X2F:
How does the foot brake work?
The foot brake shuts the motor off while simultaneously transferring the force you apply to the pedal to a brake shoe inside the lower wheel pulley, which slows and stops the wheels faster than they would ordinarily.
What is the advantage of having double ball-bearing blade guides over singles?
Double ball-bearing guides don't provide any advantages for 1/2" or smaller blades, but they do provide a much greater level of support for 3/4" and wider blades. This is important if you're planning on doing a lot of resawing or other straight cutting where a high degree of accuracy is needed.
What is the benefit of having cast-iron trunnions over aluminum trunnions?
Cast-iron trunnions give the table a more solid, robust support system, allowing it to better resist any flexing or twisting that may occur from really heavy workpieces being set on the table, especially on the outside ends of the table around the blade slot.
What is the benefit of having a machine equipped with a magnetic switch?
A magnetic switch offers a couple benefits beyond a typical switch. First, a magnetic switch is equipped with an overload relay that protects the motor from thermal breakdown that occurs if the motor is pushed beyond its limits. Second, in the event of a power outage, tripped circuit breaker, or blown electrical panel fuse, a magnetic switch will not automatically restart the motor when the power supply is restored.
What is needed to convert this machine to 110V?
First, review the circuit requirements in the owner's manual to make sure the appropriate 110V power supply circuit and wall receptacle is available. Converting the saw to 110V requires: (1) disconnecting saw from power supply, (2) removing existing power cord with 220V plug, (3) replacing the 220V magnetic switch components with those designed for 110V, (4) reconfiguring wire connections inside the motor junction box, and (5) replacing power cord with one that has the appropriate 110V plug and meets the required specifications detailed in the Owner's Manual. CAUTION: To reduce the risk of electrocution or fire, only an electrician or qualified service personnel should perform this procedure.
General Questions and Answers:
What are the pros and cons of Cast Aluminum versus Cast Iron Wheels?
The heavier mass and weight of cast-iron wheels reduces vibrations and creates a flywheel-effect, which helps the blade maintain a consistent speed during heavy cuts and when resawing. The drawbacks to this added weight and mass are that it requires more energy from the motor to get the wheels and blade up to speed; and unless the saw is equipped with a brake, it also takes longer for the wheels to come to a stop after the saw is turned off. Aluminum wheels, on the other hand, are much lighter and require less time and energy to get up to speed and bring to a stop, which is why they are ideal for many hobby saws and those that will mainly be used for general-purpose rip cuts and crosscuts, such as with 4/4 (1") or thinner stock.
What are the differences between ball bearing, block, and disc (a.k.a. "Euro style") guide blocks?
The main differences between blade guide types can be boiled down to four factors: (1) amount/quality of support, (2) amount of blade friction created from that support, (3) ease of set-up and adjustment, and (4) durability and maintenance frequency. Ball-bearing guides offer the best all-around balance of these four factors. Although they don't provide as much contact area for support as block or disc guides, they do maintain constant contact with the blade without greatly increasing friction. They are also the easiest to set up and tend to be the most durable. Disc guides provide the highest amount of contact area for support, but as with guide blocks, they must be positioned 0.004" away from the blade, which requires some type of gauge to be used for proper set up. Whereas some disc guides are fixed, similar to block guides, our Euro-Style disc guides spin with blade contact, which greatly reduces friction and the need for regular resurfacing. Block guides offer excellent support, but unless they're made from specialized materials to reduce wear or friction, they tend to fall behind the other guide types in all other categories.
Can a metal bandsaw cut wood or vice versa?
The proper cutting speed for the majority of ferrous metals is under 300 FPM. The proper cutting speed for the majority of wood cuts is over 3000 FPM. Trying to cut metals on a wood bandsaw--at speeds 10 times faster than they should be--is dangerous and will likely result in a broken blade, damage to the bandsaw, and a really horrible cut. Cutting wood on a metal bandsaw is possible, but it would be tedious and slow, and likely would not produce a decent quality of cut. In addition, bandsaw blades for cutting wood are designed much differently than bandsaw blades for cutting metal. With that said, there are some soft, non-ferrous metals (such as aluminum) that can be cut at around 1500 FPM (if using the correct blade type). Although some of our wood bandsaws operate at approximately this same speed, the other components of these saws weren't designed to handle the metal chips and swarf that would be produced by the cut, which would likely result in minor damage to the machine and void the warranty. The bottom line is this: Always buy the right machine for the job!
Can I still use my bandsaw without connecting it to a dust collector?
Yes, this is possible, but we don't recommend it. Without using a dust collector, the dust will quickly pile up in and around your machine, resulting in additional cleaning time later. Besides making a mess, fine dust can be harmful to your respiratory system. It is a better choice to connect your bandsaw to a properly designed dust collection system that at least pulls the recommended minimum CFM from each dust port on the machine.
What type of blade do I need for resawing?
Generally speaking, you'll want to use a wide blade (1/2" or larger) with "Hook" style teeth (or "Positive Claw" on Timberwolf blades) and a low number of teeth per inch (TPI). A wide blade helps ensure cuts are straight and the Hook style teeth have large gullets for removing material as the blade passes through the workpiece.
How do I know what type of blade I should buy?
Blade choice is typically determined by the type and purpose of cut, the hardness and thickness of wood, and the desired trade-offs between cutting speed vs. cutting quality. In general, a wider blade is preferred for cutting straight lines because the blade tends to wander less, and a narrower blade is preferred for cutting curves because it has a much tighter minimum cutting radius. The two main types of blade teeth are "Hook" and "Raker". Hook teeth tend to cut faster and leave rougher results, while Raker teeth tend to cut slower and leave smoother results. There are additional types of teeth, such as Skip, Positive Claw, or AS-S, that are essentially modified versions of the Hook or Raker tooth shapes, but with slight changes to the cutting angle, gullet-to-tooth ratio, tooth set, etc. to provide unique advantages for special types of cuts.
My bandsaw blade came with a tag on it that said "Recommended for cutting wood or soft non-ferrous metal." Does this mean I can cut metal with my wood bandsaw?
Just because the blade is recommended for both wood and soft, non-ferrous metal (e.g. aluminum, copper, etc.), it doesn't mean your wood bandsaw is suitable for cutting both types of material. It is important to keep in mind that the blade you bought may also be used on other types of bandsaws, such as our G0640X or G0621X, which are specially designed to cut both wood and metal.
Which saw is best for resawing?
The key specs for resawing are the maximum cutting height and a larger motor size. Due to the amount of material being cut at one time, resawing puts a lot more strain on the motor than other types of cuts, so generally speaking, the more power the better. If you're using the proper blade type (a hook-type blade with few TPI) and a modest feed speed, you can get by making the occasional rip cut using a 1 HP-2 HP motor. Otherwise, if you plan on making regular resawing cuts, you'll get the best results with a 3 HP or larger motor.
What is the purpose of the pin that fits in the blade slot opening at the end of the table?
All bandsaw tables are inherently weaker on the outside half of the table. This is due to the slotted opening that allows the blade to pass through the table during blade changes. The table pin helps reinforce the two sides of the table around this slot, so they remain aligned with each other and keep the table flat. For this reason, it is extremely important to always keep the table pin firmly installed, unless you're changing blades.
