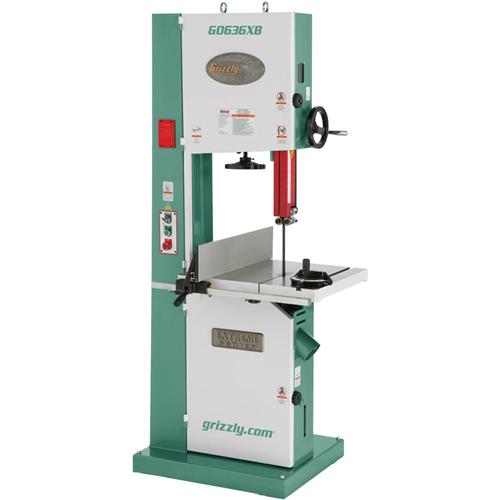

G0636XB 17" 5 HP 220V Extreme-Series® Bandsaw with Brake
|
|
|
Description
We designed this “Ultimate” 17" bandsaw to compete directly against expensive “high-end” European bandsaws. After
several years of research and development, we put together this amazing package that is a perfect blend of precision and
muscle—with all the features (and more) of comparable saws. Finally, you can buy the bandsaw of your dreams and still have
enough money left over for a bunch of high-end blades!
SPECIFICATIONS:
- Motor: 5 HP, 220V, single-phase, TEFC capacitor start induction, 60 Hz, 22 amps
- RPM: 1725
- Table size: 25-1/2" x 21" x 2" thick
- Table tilt: 5° left, 45° right
- Floor to table height: 35-1/2"
- Cutting capacity/throat: 16-1/2"
- Maximum cutting height: 16"
- Blade size: 160" long
- Blade size range: 1/8" - 1-3/8"
- Blade speed: 4500 FPM
- Resaw fence size: 6" H x 23" L
- Wheels: computer balanced cast iron with rubber tires
- Wheel covers: pre-formed, hinged steel
- Blade guides: dual ball bearing
- Bearings: sealed and permanently lubricated
- Overall size: 78-1/8" H x 35-1/4" W x 33-3/4" D
- Approximate shipping weight: 776 lbs.
FEATURES:
- Blade tension indicator
- Blade tracking window
- Precision ground cast iron table
- Micro adjusting rack & pinion table tilt
- Height scale measurement
- Deluxe cast iron fence with extruded aluminum re-saw fence
- Fence adjusts for blade lead
- Fence includes scale and magnifying window
- Miter gauge
- 4" dust port x 2
- Foot brake stop (G0636X) or motor brake (G0636XB)
- Quick change blade release/tensioning
- Rack and pinion upper guide adjustment
- Powder coated paint
- Includes 1" blade
