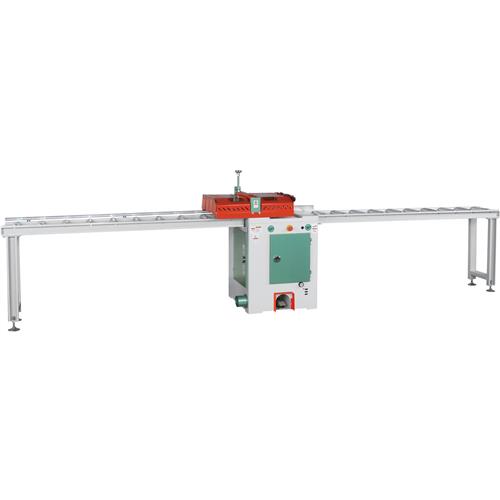

G0502 18" Cut-Off Saw (Also Known as a "Jump Saw")
FREE SHIPPING !
Description
Perfect for manufacturers and processes that require fast cut-off sawing of all sizes of material up to 12" wide, the Model G0502 performs one task very well - it crosscuts just about anything, and it can do it all day long without batting an eye! A foot activated pneumatic controlled cutting action, dual 78" extension rollers, and numerous safety advantages combine to make this one of the easiest and safest industrial cut-off machines on the market. Once you use it, you will see why this cut-off specialist has made believers out of hundreds of professional manufacturing facilities.
Features:
- 78" infeed and outfeed roller extension
- Automatic safety guard
- Swing stop and heavy-duty stop
- Foot switch
- Emergency button for cutting release
- Easily adjustable clamp
- Convenient cycle speed adjustment
Specifications:
- 10 HP TEFC induction motor
- 3 phase, 220V/440V
- 25/12.5 Amps
- 60 Hz, 3450 RPM
- 220V Magnetic switch with thermal overload protection
- Maximum cutting capacity: 2"H x 12"W, 3"H x 11"W and 4"H x 10"W
- Maximum cutting cycle speed: 81 SPM
- Maximum cutting length: 78"
- Saw blade size: 18" x 120T
- Arbor size: 1"
- Table size: 26" W x 27" D
- Table height: 34-1/2"
- Overall width with extension rollers: 184-1/2"
- Shipping Weight Approx: 1188 lbs.
 See page 36 of our 2009 Grizzly Catalog! |
