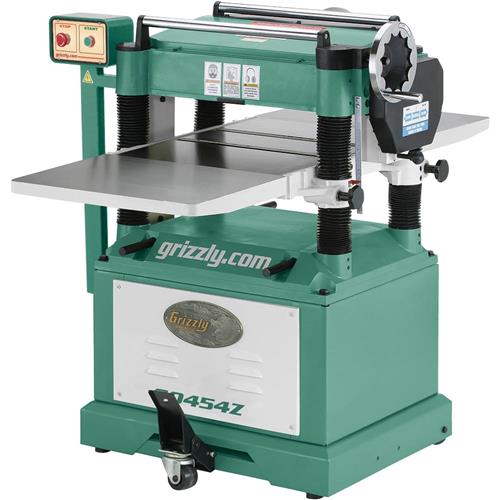

Grizzly 20" Planer w/ Spiral Cutterhead

click to zoom

    See this item in our 2015 Annual Catalog!
    See this item in our 2015 Spring Catalog!
    SKU: G0454Z
    MPN: G0454Z
    Showroom Pickup
    Put this 20" Planer in your shop without breaking the bank. Solid cast iron and steel construction and large planing capacity make this planer a true heavyweight. However, with a foot-operated caster system, you won’t need to manhandle this planer around your shop. You’ll also appreciate the 55-1/2" long precision-ground table, 5 HP motor and the two-speed gear box for maximum versatility. The G0454Z has a spiral cutterhead with 4-sided German-made carbide inserts for ultra smooth surfaces. CSA certified meeting CSA C22.2 #71.2-08 and UL 987-7 standards!

    SPECIFICATIONS:

    • Motor: 5 HP, 240V, single-phase, 19A
    • Maximum cutting width: 20"
    • Maximum cutting height: 8"
    • Minimum stock thickness: 3/16"
    • Minimum stock length: 8"
    • Maximum cutting depth: 1/8"
    • Feed rate: 16 FPM and 20 FPM
    • Cutterhead diameter: 3-1/8"
    • Number of Indexable Inserts: 98
    • Cutterhead speed: 4800 RPM
    • Feed rolls: solid serrated steel
    • Table size: 20" x 25-3/4" (20" x 55-1/2" with extension)
    • Overall dimensions: 55-5/8" L x 39" W x 45-7/8" H
    • Approximate shipping weight: 932 lbs.

    FEATURES:

    • Built-in mobile base
    • Precision-ground cast-iron table and wings
    • Board return rollers
    • Adjustable bed rollers
    • Magnetic switch with thermal overload protection
    • Four-column support with table locks
    • Two-speed automatic board feed
    • Includes 5" dust port
    • Heavy-duty cast-iron construction

    :

    :
