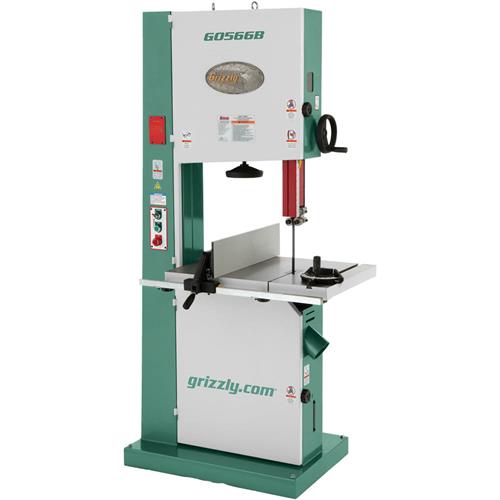

G0566B 21" Super Heavy-Duty 3 Hp Bandsaw with Motor Brake
Description
Built for production and sized for cutting work up to 20" wide to the left of the blade and 14" tall, this Heavy-Duty Bandsaw won’t back down to anything less. The 3 horsepower, TEFC motor powers the fully balanced cast iron wheels for smooth operation all day long. Other features like blade tension indicator, micro adjusting tilt table, motor brake and rack and pinion upper guide adjustment make operating functions quick and convenient. Check out the additional features below.
SPECIFICATIONS:
- Motor: 3 HP, 220V, single-phase
- Throat capacity: 20"
- Height capacity: 14-1/4"
- Table size: 29-1/2" x 20-3/4" x 1-7/8" thick
- Table tilt: 5° left, 45° right
- Standard blade length: 165"
- Blade size range: 1/4" - 1-3/8"
- Blade speed: 4,600 FPM
- Quick change blade release/tensioner
- Micro adjusting geared tilting table
- Cast iron wheels with polyurethane tires
- Ball bearing guides
- Includes 1" blade
- Approx. shipping wt.: 581 lbs.
 See pages 100, and 101 of our 2009 Grizzly Catalog! |
