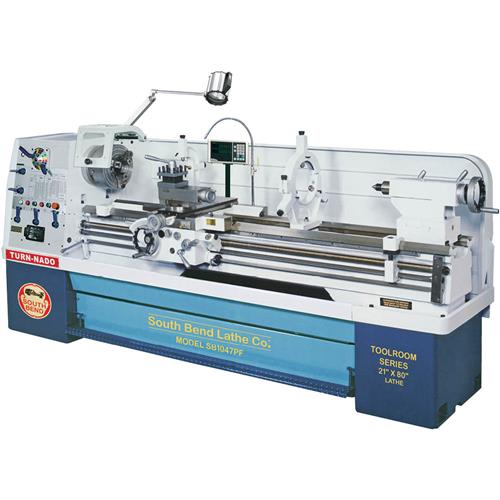

South Bend - 21" x 80" Turn-Nado Gearhead Lathe with DRO

South Bend? quality is built into every one of these fantastic gearhead lathes! Features include universal QC gearbox, extra long saddle for stability, pull out chip pan, and of course, a full compliment of standard equipment that includes 3 & 4-jaw chucks, steady & follow rests, micrometer carriage stop and a lot more. Just check out the specs below and you'll agree, these lathes will be a handsome addition in any busy shop.

These South Bend gearhead lathes are supplied with an adjustable feed rod clutch and stop collar on the feed rod. This is a great safety feature when working close to the chuck. Set the stop collar so the saddle and tool post are positioned at a safe distance from the chuck and tighten the lock screw. Adjust the feed rod clutch to a low setting. If the carriage comes into contact with the collar, the clutch slips, saving your machine from a serious crash.

Specifications:

Swing over bed: 20.98"

Distance between centers: 80"

Swing over cross slide: 14.01"

Swing over gap: 31.10"

Cross slide travel: 11"

Compound travel: 5.39"

Carriage travel: 79"

Spindle bore: 3.149"

Spindle taper: MT #7

Spindle speeds: (16), 20-1600 RPM

Tailstock taper: MT #5

Tailstock travel: 6.5"

Tailstock barrel diameter: 3"

Inch threads: (38) 2 to 72 TPI

Metric threads: (40) 0.4 to 14 mm

Modular pitches: (18) 0.3 to 3.5 MP

Diametral pitches: (21) 8 to 44 DP

Longitudinal feed range: 0.0015" to 0.04"

Cross feed range: 0.00075" to 0.02"

Spindle motor: 15 HP, TEFC induction

Voltage/Amps: 440V, 3-Phase

Coolant motor: 1/8 HP, TEFC induction

Approximate shipping weight: 6020 lbs.

Standard Equipment:

Fagor DRO

12" 3-Jaw Scroll Chuck (Bolt on Jaws)

14" D1-8 4-Jaw Independent Chuck

Chuck Safety Guard with Limit Switch

14" Faceplate

Steady Rest

Follow Rest

Halogen Work Light

Coolant System

Dead Center MT #5, 2 pcs

Spindle Center Sleeve MT #7 - MT #5

Micrometer Carriage Stop

4-Way Tool Post

Tool Set & Box

Level Pads 8 pcs.

Features:

Three V-way Bed

FAG German Bearings

Full Length Splash Guard

Operation Manual

Allen Bradley Controls

Handwheel Safety Guard

Sliding Chip Tray

Wood Crate
