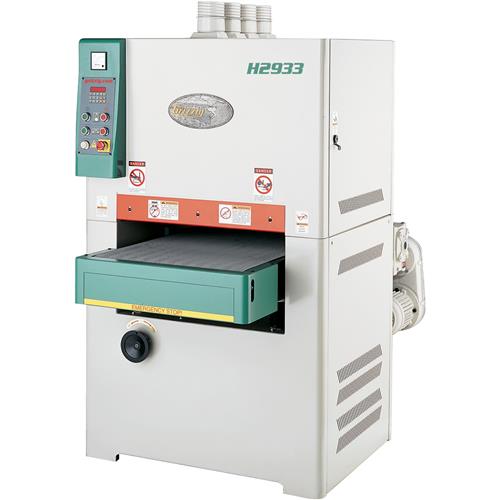

Grizzly 24" Double Head Wide-Belt Sander

click to zoom

    See this item in our 2015 Annual Catalog!
    SKU: H2933
    MPN: H2933
    Showroom Pickup
    Rarely can a machine claim to cut your sanding time in half, but our Double Head Wide-Belt Sanders feature dual heads enabling them to sand to finer grits in a single pass! The first belt runs on a single drum and the rear belt runs on a platen system which allows you to adjust the sanding depth. If you are still sanding through 2 grit levels using a single head wide-belt sander you are not being the most efficient. CSA certified meeting CSA C22.2 #105-1953 and UL 987 standards!

    Features:

    • Rubber pressure rollers
    • Hard rubber infeed drum
    • Adjustable graphite platen
    • Digital encoder depth control
    • Amp/load meter
    • Disc brake for emergency stop
    • Variable feed speed
    • Made in an ISO 9001 Factory!

    Specifications:

    • Sanding motor HP: 15 HP, TEFC
    • Sanding motor voltage: 230V/460V*
    • Sanding motor phase: 3-phase
    • Sanding motor amps: 37A/18A
    • Conveyor motor HP: 1 HP, TEFC
    • Conveyor motor amps: 3.4A/1.7A
    • Table lift motor HP: 1/4 HP, TEFC
    • Table lift motor amps: 1.2A/0.6A
    • Footprint: 40" x 31"
    • Maximum board width: 24"
    • Maximum board thickness: 6"
    • Minimum board length: 14"
    • Minimum board thickness: 3/16"
    • Front drum surface speed: 3543 FPM
    • Rear drum surface speed: 2554 FPM
    • Conveyor speed: 14–60 FPM
    • Sanding belt size: 25" x 60"
    • Air requirement: 57 – 75 PSI, 12.3 CFM
    • Overall width: 42"
    • Overall height: 71-1/2" H
    • Overall depth: 59-1/2"
    • Dust ports: 4
    • Approx. shipping weight: 2227 lbs.

    *460V operation requires purchasing additional components and installation by our technicians. Please call customer service at (570) 546-9663 for more information.

    :

    :
