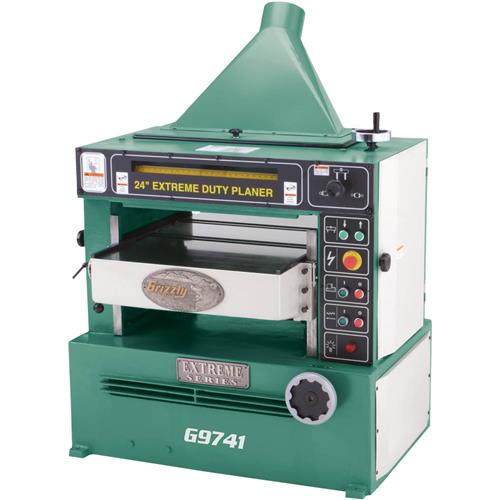

G9741 24" Extreme-Duty Planer

Price:$7,995.00
Freight:*$255.00
Your Price:**$8,250.00
Add To Wish List


Description
This is the "big daddy" in our line of extreme-duty planers! This machine has all the features of its little brother, like the power up/down control for the table and a variable-speed feed. The bed rollers on this machine are also power driven and adjustable for height when rough-cut lumber is milled. Segmented chip breakers, four knife cutterhead and feed rate of 20-40 feet per minute means you can get the best possible finish. Check out the specs and features below, and you will see this machine can hold up to the most strenuous production runs.

Specifications

  • Cutterhead motor: 10 HP, 220V/440V*, 3-phase
  • Feed motor: 1 HP
  • Table elevation motor: 1/2 HP
  • Precision-ground cast iron table
  • Table size: 24" x 35-1/2"
  • Maximum cutting width: 24"
  • Maximum cutting height: 9"
  • Maximum cutting depth: 5/16"
  • Minimum stock thickness: 1/4"
  • Minimum stock length: 10-1/2"
  • Feed rate: 20–40 FPM
  • Number of knives: 4 HSS—24-1/8" x 13/16" x 1/8"
  • Cutterhead diameter: 4-5/8"
  • Cutterhead speed: 5000 RPM
  • Number of cuts per inch: 42–84
  • Number of cuts per minute: 20,000
  • Cutterhead power transfer: Twin belt drive
  • Motor bearings: Shielded and lubricated ball bearings
  • Overall size: 42-3/8" W x 58" H x 36" D
  • Footprint: 38" x 28"
  • Approximate shipping weight: 1980 lbs.

Features:

  • Power feed rollers are steel, segmented infeed and polished outfeed
  • The G9741 cutterhead is a one piece machine shaft with 4 knife slots and shielded ball bearings
  • Micro adjustment of table height
  • Segmented chip breaker
  • Variable feed rate
  • 5" dust port
  • Convenient control panel

*Prewired for 220V. If you require 440V operation, Grizzly must convert your machine at the time of purchase to maintain the machine’s warranty. A $250 non-refundable fee will be added to your order. Please allow extra shipping time for the conversion. If you need more information, please contact technical service.
