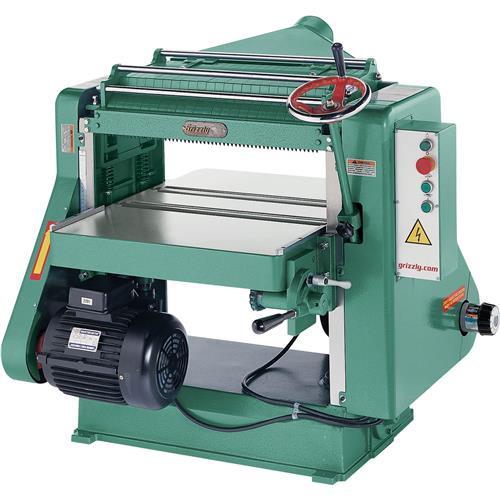

Grizzly 24" Planer 7-1/2 HP 3-Phase

click to zoom

    See this item in our 2015 Annual Catalog!
    SKU: G7213Z
    MPN: G7213Z
    Showroom Pickup
    Wide, solid wood panels? No problem! Durability, dependability & capacity are the hallmarks of this massive machine. The 5 HP, single-phase motor powers through the toughest hardwoods with ease & features convenient bed roller adjustment for skip & finish planing. The large, conveniently located handwheel facilitates bed adjustment. If you're looking for an industrial-duty planer that will outlast the building you put it in, look no further!

    Specifications:

    • Cutterhead motor: 7-1/2 HP, 220V/440V*, 3-phase
    • Feed motor: 2 HP
    • Precision-ground cast iron table
    • Table size: 31-1/8" L x 24-1/8" W
    • Maximum cutting width: 24"
    • Maximum cutting height: 8"
    • Maximum cutting depth: 1/8"
    • Minimum stock thickness: 1/4"
    • Minimum stock length: 7-1/2"
    • Feed rate: 17–26 FPM
    • Number of knives: 4 HSS
    • Knife size: 24" x 1" x 1/8"
    • Cutterhead speed: 5200 RPM
    • Number of cuts per inch: 67–102
    • Number of cuts per minute: 20,800
    • Power transfer: Double V-belt
    • Overall size: 42" wide x 37" high x 40-1/2" deep
    • Footprint: 30" x 20-1/2"
    • Approximate shipping weight: 1126 lbs.

    FEATURES:

    • Cutterhead ball bearings include grease fittings
    • Heavy-duty cast iron construction throughout
    • Powerful 7-1/2 HP capacitor start TEFC motor and magnetic switch
    • Bed rollers are lever adjustable
    • 5" dust exhaust hood & board return rollers
    • Variable speed feed
    • Infeed roller is segmented steel
    • Outfeed roller is finely finished steel
    • Measuring scale is both standard and metric

    *Prewired for 220V. If you require 440V operation, Grizzly must convert your machine at the time of purchase to maintain the machine’s warranty. A $250 non-refundable fee will be added to your order. Please allow extra shipping time for the conversion. If you need more information, please contact technical service.

    :

    :
