Grizzly   |  Model: G0800
24" x 48" Heavy-Duty Wood Lathe
Price: $4,868.75
Recently Added ×
You May Also Like
(15)

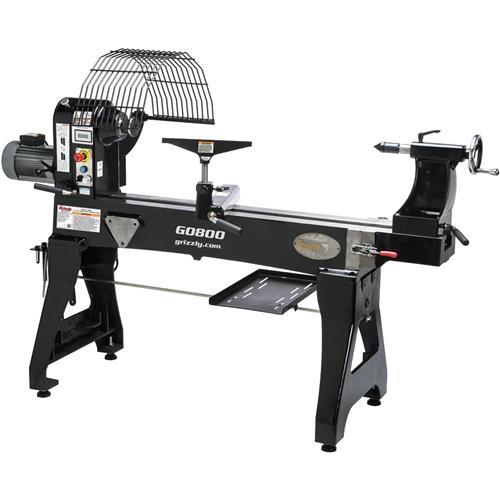

Grizzly G0800 - 24" x 48" Heavy-Duty Wood Lathe

Buy Now!
Price:
Freight:  Freight
Tariff Fee:  Tariff Fee
Oversize:  Oversize
Total:
Monthly payments as low as . Learn More
Take your turning to the next level with this Heavy-Duty Wood Lathe. Solid cast iron from the ground up, this stout machine offers endless functionality whether turning fine spindles or large bowls. Where the chisel meets the grain is our fully-adjustable 14-1/4" tool rest with heavy-duty locking handle and 1" post diameter. The headstock assembly can be positioned anywhere along the bed, and the tailstock swings aside on the hinged bed when not in use, allowing for maximum workpiece clearance. Turn at speeds of 60-3500 RPM thanks to the 3HP, three-phase motor with crystal-clear digital readout and forward/reverse spindle function. The large 1-1/2" tailstock quill diameter offers more rigidity, minimizing vibration, and extends 4-1/2" to maximize workpiece contact. Extend the tailstock even farther when large capacity is required with the 12" swing-away bed section, providing up to 48" between centers, and add the optional comparator arms for better reference of complex patterns. Take the next step toward creating your dream turning projects with this Heavy-Duty Wood Lathe.

Specifications:

  • Motor: 3HP, 220V, 3-phase with inverter for single phase power equipment
  • Swing over bed: 24"
  • Swing over tool rest base: 20"
  • Distance between centers: 48"
  • Maximum distance tool rest to spindle center: 15"
  • Tool rest width: 14-1/4"
  • Spindle speeds: Variable, L: 60-1000 RPM, H: 200-3500 RPM
  • Spindle nose: 1-1/4" x 8 TPI
  • Spindle taper: MT#2
  • Spindle bore (dia.):5/8"
  • Tailstock taper: MT#2
  • Tailstock quill travel: 4-1/2"
  • Spindle center height to floor: 46"
  • Number of spindle indexes: 48, 7-1/2°
  • Approximate shipping weight: 845 lb.
Features:
  • Electronic variable-speed spindle control with digital RPM readout
  • Forward/reverse switch
  • Headstock can be positioned anywhere along the bed
  • 12" swing-away bed for easy tailstock storage
  • Built-in tool holder
  • Headstock, tailstock, and tool rest support have lever-action cam-locks for quick positioning
  • Adjustable feet
  • All cast iron construction
Standard Equipment:
  • Chuck guard
  • Chisel tray
  • 3-1/4" faceplate
  • Tool holder
  • Live center
  • Live center pin
  • Spur center
  • Index pin
  • Knockout bar
  • 50mm open-end wrench
  • 3mm and 10mm hex wrenches
Show More... California Proposition 65 Warning

Accessories and Related Items: View All

You May Also Like:

Customers who purchased this item also purchased:

15 Customer Reviews (5 out of 5 stars): Sign in to write a review

Awesome machine 7/18/2018

Very well built and look forward to having many years of fun. The only complaint would be that the RPM indicator would turn off when powering down, this would save the the meter from burn out after some period of time..

Darrell A
6/25/2018

I purchased theGO800 approx. 1 month ago, and am very pleased with the performance. I am primarily involved with segmented bowls and vases, and could not be more pleased with the lathe performance,

5/23/2018

I am impressed by the quality of this lathe. I plan to put more hours on it and compose a detailed review. I have recommended this to my friends.

4/11/2018

This thing is massive. I cannot imagine any blank making it walk across the shop floor. Smooth and powerful. Count me as a happy camper.

charles H
I was extremely surprised and have not looked back. 3/8/2018

Please run a sale on this machine :-) encourage me to buy it!
I haven't bought it yet cause i haven't seen much feedback on it. but......it looks like an awesome machine.
Several months ago a write the above.
Grizzly never run a sale but i decided to bite the bullet.
I'm glad i did.
It's a great machine, put together with lots of thought. I have been using it over the past month and i do not have a complaint.
I have owned the Powermatic 24 X 48 & Oneway 24 X 36 This machine not anywhere close to the prices of others in class does the same job.
If your looking for a workhorse, here it is.

Very nice. All previously report problems have been corrected on this model. Very smooth and quit. 3/8/2018

Very nice product. Smooth and quiet operation. Should have gotten one earlier.

In the higher class of lathes 3/8/2018

This lathe is heavy duty in all respects, and very well machined! Powerful, smooth and very stable. It has state of the art features. I have turned on a number of high end lathes, and this G0800 is ergonomically a pleasure, and has much to compete with lathes that are more than twice its price, so great value here as well.

10/12/2017

I am surprised and content with the purchase.

The spindle lock needs to interrupt the motor. Just spins the best. Not a good design.
Otherwise fine machine.

Dan
A Must have for the serious Turner 7/13/2017

I looked at and tried all of the current 24" swing lathes. You cannot find one with the features and accuracy that the Grizzly G0800 provides. This machine is very precise, tight, and solid when you are turning. It is very heavy and the lathe design provides excellent balance even when you are turning large out of round pieces. The motor torque and the large shaft bearings run smooth through all speeds even with very small and large pieces/loads. I would rate this machine a 10 out of 10 for the investment and for the features it comes with. Happy turning!!!

7/8/2017

All that I expected. An excellent value in a "big boy" lathe! erik peterson

Richard M
Great Product 5/26/2017

I was really impressed with how quite it runs. The only time I suspected I had a problem with vibration was the result of not having the lever pushed down hard enough on the drive head anchoring it to the rail.

Brian K
It is even better than I had hoped! 4/19/2017

First of all - get 2 friends, plus a lift to set up this giant.

Extremely smooth and solid. I have had it for4-5 months and it is doing everything I ask of it. No vibration. The swing away feature is great for getting the tailstock out of the way. I have started by doing everything that I know how to do with a smaller lathe and am just now making use of the bigger capacity.

I'll say more later, but count me as completely satisfied.

Papaw
Nice machine 10/17/2016

I have had this lathe for about 2 months. I am very happy with it i bought the bed extension and use it all the time. I have the headstock at the end of the bed and with the extension I can stand directly in from of or even on the backside (it helps reduce the strain on my back) of the piece i am turning. I compared this lathe with all the big name brands and i belive I got the most bang for my buck with this lathe.

woodturner
Machine is a beast 4/8/2016

I picked up this lathe at the showroom and have already begun making sawdust. Definitely worth the money. Make sure you have a friend available to help set it up. Two men will be able to pick up the bed during assembly. Also, if you don't have it delivered to your house, make sure you have either a truck or trailer as the crate measures in at 58x31x30 inches and weighs over 800 pounds.
