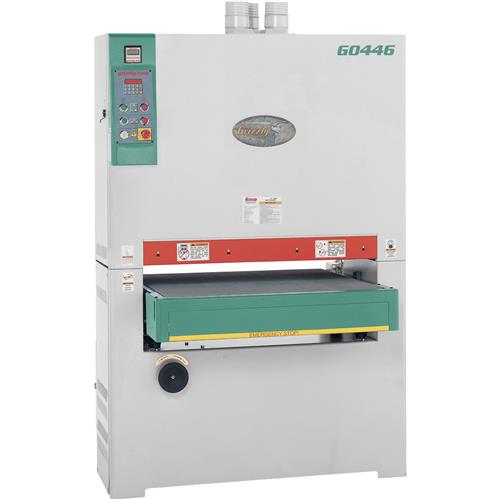

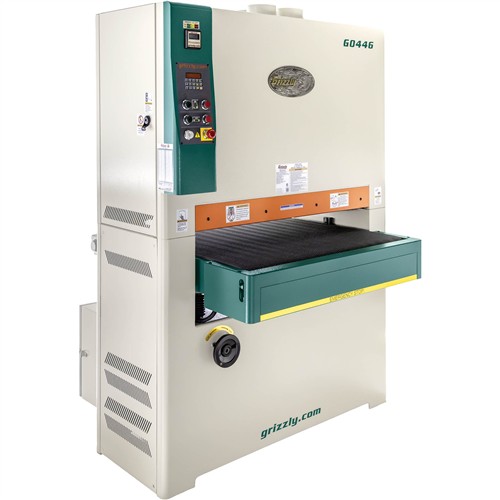

37" 15 HP 3-Phase Platen Type Wide-Belt Sander

click to zoom

    See this item in our 2015 Annual Catalog!
    SKU: G0446
    MPN: G0446
    Showroom Pickup

    We sell more wide-belt sanders than just about any company in the USA! Filling in the gap between the popular 25" and 43" wide-belt sanders, our 37" Wide-Belt Sanders offer professional sanding results, unmatched accuracy, and unbeatable value. State-of-the-art digital controls, a micro-adjustable graphite/felt platen and three super efficient dust collection ports are just a few features that make these sanders a joy to use. If you are looking for the best that money can buy, Grizzly Wide-Belt Sanders have been designed and priced just for you! CSA certified meeting CSA C22.2 #105-1953 and UL 987-7th standards!

    Features:

    • Built in air filter/lubricator
    • Independent motor control
    • Pneumatic belt tracking and tensioning
    • Amp meter for load measurement
    • Safety shut-off bar
    • Digital readout and control panel
    • (3) 4" dust ports
    • Steel cabinet
    • Rubber infeed drum
    • Steel outfeed drum
    • Rubber pressure drums
    • Micro-adjustable graphite/felt platen

    Specifications:

    • Type: Platen
    • Sanding motor HP: 15 HP
    • Sanding motor voltage: 230V
    • Sanding motor phase: 3-phase
    • Sanding motor amps: 36A
    • Conveyor motor HP: 1 HP
    • Conveyor motor amps: 3.4A
    • Table lift motor HP: 1/4 HP
    • Table lift motor amps: 1.2A
    • Footprint: 19" x 51-1/2"
    • Maximum board width: 36-1/2"
    • Maximum board thickness: 6"
    • Minimum board length: 9"
    • Minimum board thickness: 1/8"
    • Front drum surface speed: 2600 FPM
    • Conveyor speed: 15–49 FPM
    • Air requirement: 57 – 75 PSI, 7 CFM
    • Sanding belt size: 37" W x 75"
    • Overall width: 56-1/2"
    • Overall height: 77-1/2"
    • Overall depth: 52"
    • Approx. shipping weight: 1887 lbs.

    :

    :
