Grizzly   |  Model: G0571
37" Wide-Belt Sander, Single-Phase
Price: $10,250.00
Recently Added ×
You May Also Like ×

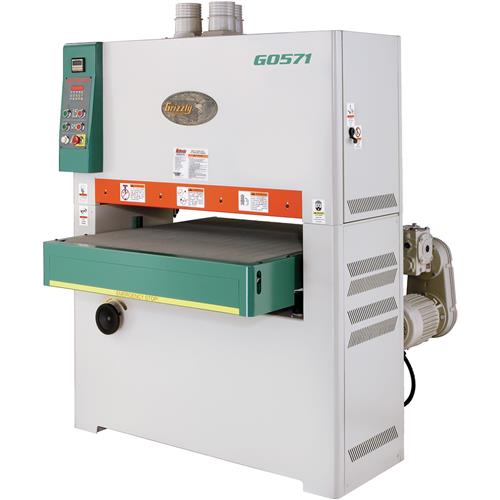

Grizzly G0571 - 37" Wide-Belt Sander, Single-Phase

click to zoom

    See this item in our 2016 Main Catalog!
    193 223
    Showroom Pickup

    We sell more wide-belt sanders than just about any company in the USA! Filling in the gap between the popular 25" and 43" wide-belt sanders, our 37" Wide-Belt Sanders offer professional sanding results, unmatched accuracy, and unbeatable value. State-of-the-art digital controls, a micro-adjustable graphite/felt platen and three super efficient dust collection ports are just a few features that make these sanders a joy to use. If you are looking for the best that money can buy, Grizzly Wide-Belt Sanders have been designed and priced just for you! CSA certified meeting CSA C22.2 #105-1953 and UL 987-7th standards.


    • Built in air filter/lubricator
    • Independent motor control
    • Pneumatic belt tracking and tensioning
    • Amp meter for load measurement
    • Safety shut-off bar
    • Digital readout and control panel
    • (3) 4" dust ports
    • Steel cabinet
    • Rubber infeed drum
    • Steel outfeed drum
    • Rubber pressure drums
    • Micro-adjustable graphite/felt platen


    • Type: Platen
    • Sanding motor HP: 10 HP
    • Sanding motor voltage: 230V
    • Sanding motor phase: single-phase
    • Sanding motor amps: 50A
    • Conveyor motor HP: 1 HP
    • Conveyor motor amps: 7A
    • Table lift motor HP: 1/3 HP
    • Table lift motor amps: 3.6A
    • Footprint: 19" x 51-1/2"
    • Maximum board width: 36-1/2
    • Maximum board thickness: 6"
    • Minimum board length: 14"
    • Minimum board thickness: 1/8"
    • Front drum surface speed: 2600 FPM
    • Conveyor speed: 15–49 FPM
    • Air requirement: 57 – 75 PSI, 7 CFM
    • Sanding belt size: 37" W x 60"
    • Overall width: 53"
    • Overall height: 69-1/2"
    • Overall depth: 49-1/2"
    • Approx. shipping weight: 1818 lbs.



    1 Customer Review (5 out of 5 stars): Sign in to write a review

    Chambersburg, PA
    Awesome Machine! 11/28/2015

    I bought this sander in August 2015. I wanted single phase so I didn't have the expense of a phase converter. This machine does everything I expect it to do. I have ran 60, 80, 100, 150 and 180 grit belts and all worked great. I use the platen on 150 and 180. The power elevation table is great. For those who say a wide belt has to be three phase, they haven't ran one of these! The table and sanding drums were dead on accurate right out of the crate.
    Get a good dust collector, you'll need it.
    I did make one modification. The access doors come with a key to operate the latch. I turned the outside handle 180 degrees so it is toward the top. The key hangs on the handle for easy access to change belts.

    Animation for G0571
