Grizzly   |  SKU: G0481  |  MPN: G0481
42" Swivel Bending Brake
Reg: $1,125.00
Price: $995.00
Recently Added ×
You May Also Like ×

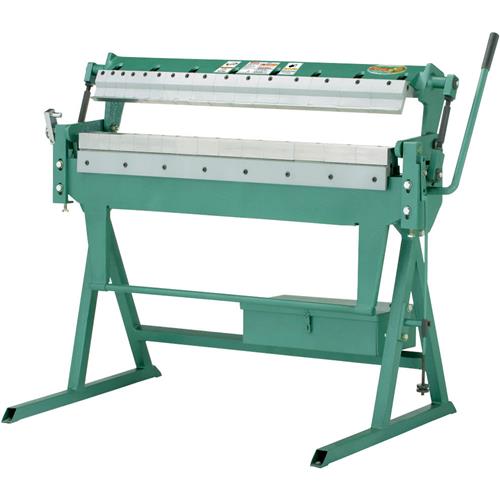

Grizzly 42" Swivel Bending Brake

click to zoom

    See this item in our 2015 Annual Catalog!
    667
    SKU: G0481
    MPN: G0481
    Showroom Pickup
    This 42" Swivel Bending Brake opens wide for complex bends and deeper pans and boxes. Eleven different finger widths can be arranged for a variety of pan and box widths. Includes on-board toolbox, angle gauge, swing-away stop gauge, and full-width hand bar. Box fingers are precision-ground steel with hardened edges for long, dependable service.

    Specifications:

    • Maximum working width: 42"
    • Maximum full width sheet metal thickness: 16 Ga. mild steel
    • Maximum clamping beam lift: 4-3/4"
    • Maximum height of pan/box sides: 1-1/2"
    • Maximum bending angle: 0-140°
    • Box bending fingers: 1", 1-3/16", 1-3/8", 1-9/16", 1-3/4", 2", 2-15/16", 3-15/13", 5-15/16", 9-7/8"
    • Overall dimensions: 52" W x 42-1/2" H x 30-3/4" D
    • Approximate shipping weight: 525 lbs.

    :

    :
