Grizzly   |  Model: G0442HEP
5 HP Dual-Filtration HEPA Cyclone Dust Collector
Reg: $3,725.00
Price: $3,575.00
Recently Added ×
You May Also Like ×

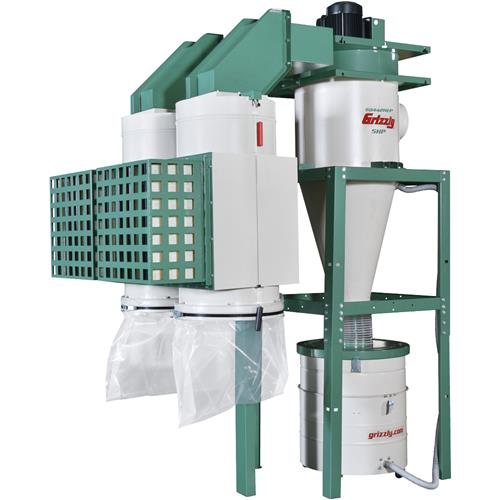

Grizzly G0442HEP - 5 HP Dual-Filtration HEPA Cyclone Dust Collector

click to zoom

See this item in our 2016 Christmas Catalog!
19
See this item in our 2016 Main Catalog!
211
Write a review
Model: G0442HEP

Showroom Availability

Missouri Temporarily Out of Stock
Washington Temporarily Out of Stock
Showroom Pickup
The same unit as our G0442 and G0601, but pre-equipped with the upgraded dual-filtration HEPA filter system! Features a primary filter efficiency of 99.9% at 0.2-2 microns, and a secondary HEPA filter efficiency of 99.97% at 0.3 microns in size.

Cyclonic action separates the heavy dust particles from the fine particles and drops them into the 55-gallon steel drum. The fine dust travels past the 16" diameter impeller and is then trapped by a cartridge filters made of spun-bond polyester. The cartridge filter is pleated to provide 226 square feet of surface area for efficient air movement and a clear plastic bag collects the fine cake that shakes off the filter for consistent dust collector performance. Casters mounted to the drum also make disposal of the larger chips and dust as easy as it gets. Other features include: a vertical motor support for reduced vibration, thick walled 11 gauge steel blower housing, 14 gauge steel cyclone body, 360 degree blower rotation for easy connection to a duct system, TEFC Class "F" motor, filter cleaning devise for optimum performance and a magnetic switch with remote control. A rugged steel stand is included.

CSA certified meeting CAN/CSA C22.2 #243-10 and ANSI/UL 1017-8 standards!

Specifications:

  • Motor: 5HP, 220V, single-phase, 3450 RPM, 60 Hz, 22.4A, TEFC, Class "F"
  • Remote controlled magnetic switch
  • Intake hole size: 10" with 8" adapter
  • Bag material: Plastic
  • Impeller: 16" steel radial fin
  • Airflow capacity: 2184 CFM @ 1.9" SP
  • Maximum static pressure: 14.0"
  • Primary filter: 99.9% at 0.2-2 microns
  • Secondary filter: HEPA rated 99.97% at 0.3 microns
  • Filter surface area: 226 sq. ft.
  • Collection drum: Steel, 55 gallons
  • Overall dimensions: 63"W x 111-1/2"H x 56-7/8"D
  • Approximate shipping weight: 845 lbs.
