Grizzly   |  SKU: G5912Z  |  MPN: G5912Z

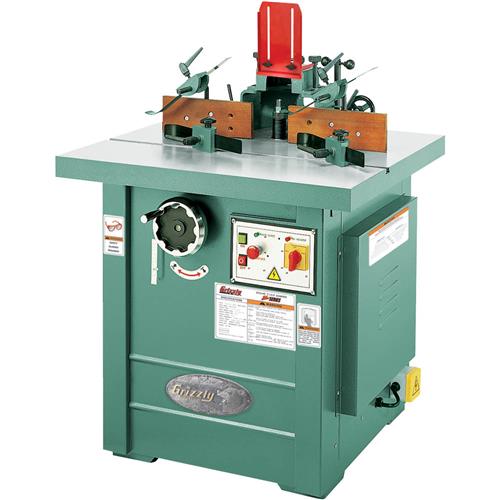

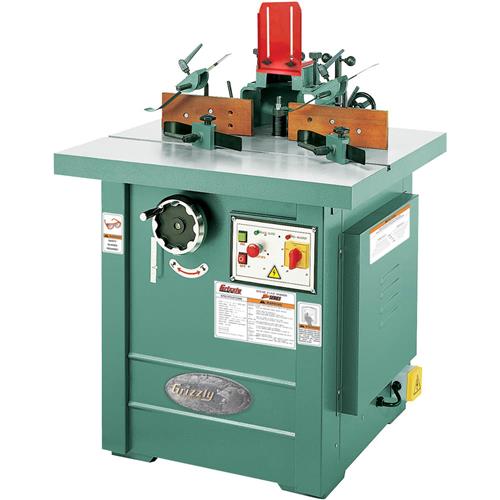

5 HP Professional Spindle Shaper - Z Series
Reg: $2,625.00
Price: $2,495.00
Recently Added ×
You May Also Like ×

Grizzly 5 HP Professional Spindle Shaper - Z Series

click to zoom

    See this item in our 2015 Annual Catalog!
    76 78 315 549
    See this item in our 2015 Spring Catalog!
    10 15
    SKU: G5912Z
    MPN: G5912Z
    Showroom Pickup

    Turn big shaper cutters with confidence. These Professional Shapers handle cutters up to 5-7/8" diameter by 5-1/8" tall and the four speeds let you slow down those big cutters from 10,000 RPM to 3600 RPM. A micro-adjustable split fence lets you dial in for full edge cutting support and spring hold downs increase safety and production. Make one of these Professional Shapers a producer in your shop!

    Features:

    • Motor: 5 HP, 220V, single-phase, TEFC• Heavy-duty, precision-ground cast iron table
    • Table size: 35-1/2" wide x 28" deep
    • Table counterbore: 7" x 5/8" deep
    • Spindle travel: 3-1/4"
    • Spindle sizes: 3/4", 1 and 1-1/4"
    • Spindle capacity: 5-1/8" (1-1/4" spindle)
    • Spindle speeds: 3600, 5100, 8000 and 10,000 RPM
    • Maximum cutter diameter: 5-7/8"
    • Overall dimensions: 35-1/2" wide x 42" high x 34-3/4" deep
    • One-piece cabinet-style stand
    • Epoxy paint
    • Independent, micro-adjustable fence with 4" dust port
    • Shielded and permanently lubricated ball bearings
    • Approximate shipping weight: 604 lbs.

    Includes:

    • 3 spindles with 8 spacers and 2 nuts
    • 2 wood fence pieces
    • 1 cast iron miter gauge
    • 4 hold-down assemblies
    • 3 table inserts: 7" OD x 3-1/2" ID, 3-1/2" OD x 3" ID and 3" OD x 2" ID
    • Assorted wrenches

    :

    :
