Grizzly   |  Model: G5913Z
5 HP Professional Tilting Spindle Shaper - Z Series
Reg: $3,150.00
Price: $2,995.00
Recently Added ×
You May Also Like ×

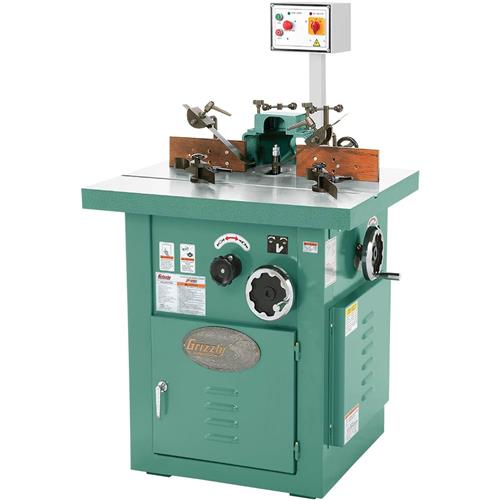

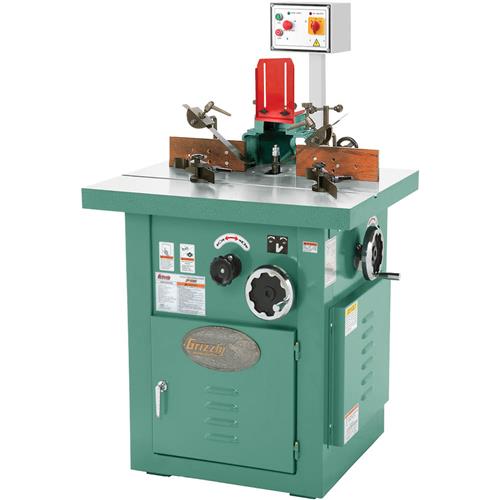

Grizzly G5913Z - 5 HP Professional Tilting Spindle Shaper - Z Series

click to zoom

See this item in our 2016 Christmas Catalog!
8 14
See this item in our 2016 Main Catalog!
75 313 527

Showroom Availability

Missouri In Stock
Washington Temporarily Out of Stock
Showroom Pickup

If you need moulding profiles in hardwoods that you can't find at your local millwork supplier, we think you'll find our new 5 HP Tilting Spindle Shaper worthy of your consideration. Built to withstand the rigors of industrial production, this impressive shaper will literally cut more profiles than you can shake a stick at. The unique tilting spindle will add even more variety and utility to your shaping operations and the conveniently located controls and adjustments make it a safe and easy machine to use and enjoy.

Specifications:

  • Motor: 5 HP, 220V, single-phase
  • Cast iron table and fence assembly
  • Table size: 28" x 35-1/2"
  • Table counterbore: 7" x 5/8" deep
  • Spindle travel: 3-1/4"
  • Spindle tilt: 45°
  • Spindle sizes: 3/4", 1" and 1-1/4"
  • Spindle speeds: 3600, 5100, 8000, 10,000 RPM
  • Spindle capacity under nut: 5-1/8" (1-1/4" spindle)
  • Maximum cutter diameter: 5-7/8"
  • Welded steel cabinet
  • Tilting spindle allows for infinite profile possibilities with your existing shaper cutters
  • Independent, micro adjustment fence
  • Forward/reversing switch
  • 4" dust port
  • Sturdy hold-downs and cast-iron miter gauge included
  • Overall dimensions: 35-1/2" wide x 43" high x 39" deep (to top of switch)
  • Approximate shipping weight: 692 lbs.
  • Accessories and Related Items: View All

    You May Also Like:

    Customers who purchased this item also purchased:

    1 Customer Review (5 out of 5 stars): Sign in to write a review

    Pete
    Chesapeake, Virginia
    G5913Z 5 HP 1PH Tilting Spindle Shaper 5/26/2016

    I've had a great expierence with the purchase of this Shaper.
    The Machine arrived just 3 days after I ordered it and the cutters arrived the following day. The crate had some dammage , however, the machine was in absoutely perfect condition "and I do mean perfect", No Dents, No Dings No Scratches and No blemishes at all.
    I got the power supplied to it and it runs very very smoothly with no vibration whatsoever. It also runs very quietly.
    Everything was complete and no parts were missing. It even came with an extra drive belt and a exellent cast iron miter.
    All 14 sets of cutters are of very high quality .
    Everything I ordered was in stock and Phil "my Sales Rep" was very knowledgable and communicated very effectively.
    My order was handled very efficiently.
    Thank You Grizzly !!!
    I look forward to doing biusness with all of you good folks again in the future.
    Pete Conlogue
    Chesapeake, Virginia

    Animation for G5913Z
    ×
