Grizzly   |  Model: G9742
5" x 6" Metal-Cutting Bandsaw w/ Swivel Head
Price: $615.00
Recently Added ×
You May Also Like

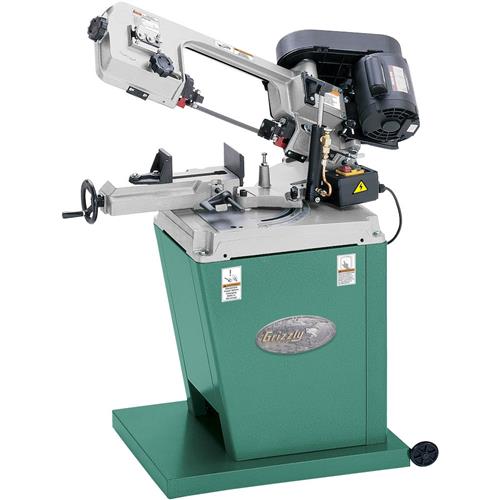

Grizzly G9742 - 5" x 6" Metal-Cutting Bandsaw w/ Swivel Head

click to zoom

See this item in our 2017 Main Catalog!
678
Showroom Pickup
This is one of the best saws on the market for the small or large shop. It features a 5" round and 5" x 6" rectangular capacity. But what really sets this apart from other saws of this size is the head swivel giving a maximum angle of cut of 60 degrees! Remember how much trouble it is to change a vise backing jaw only to get a 45 degree cut? Not with this guy. The easy-to-adjust head has stops in all the right places. And because the vise backing jaw is rigid on this saw, it is taller, giving it the ability to support the workpiece better. And of course, the machine comes with all the features you'd expect from Grizzly like hydraulic down feed control, easy access wheels for quick blade changes and the right blade speeds to do the job.

Specifications:

  • Max. capacity rectangular @ 0 degrees: 5" x 6"
  • Max. capacity circular @ 0 degrees: 5"
  • Max. capacity rectangular @ ±45 degrees: 2-15/16" x 3-3/4"
  • Max. capacity circular @ ±45 degrees: 3-3/4"
  • Max. capacity rectangular @ +60 degrees: 2-3/16" x 1-3/4"
  • Max. capacity circular @ +60 degrees: 1-3/4"
  • Blade speeds: 80, 120, 200 FPM
  • Blade size: 64-1/2" x 1/2"
  • Motor: 1/2 HP, 110V/220V, prewired 110V, single-phase, 60Hz, 1725 RPM
  • Amps: 7/3.5
  • Drive: V-belt
  • Transmission: sealed worm gear
  • Overall height: horizontal 42-1/2"; vertical 54-3/4"
  • Height floor-to-table: 29"
  • Overall width: 23-3/8"
  • Overall length: 39"
  • Overall bed: 19-1/4" x 13-1/2" x 3"
  • Footprint: 26-1/2" x 20-1/2"
  • Angular cuts: -45 degrees to +60 degrees
  • Blade size: 1/2" x 64-1/2"
  • Included blade size: 64-1/2" x 1/2" x 15 TPI (similar to Grizzly model G5108)
  • All ball bearing drive wheel and blade guides
  • Shipping weight approx.: 168 lbs.

Accessories and Related Items: View All

You May Also Like:

Customers who purchased this item also purchased:

6 Customer Reviews (4.3 out of 5 stars): Sign in to write a review

Good but needs some tweaks
4/ 5stars

First thing the air/gravity thing is worthless. Upon first use the blade hits so hard it jambs and even with the feed running at crawl this happens. The fix is to add a set of springs to counter balance the arm. Once that was done the unit works just fine. I use it a lot and so far I am very pleased (after the mandatory fix)
The angle cut is very handy and fast to change and I extended the stop gauge rods to 30 inched each way so multiple cuts are accurate and easy.
As with almost all China made products they work fine but require a tweak or two to actually work.
I would buy another when the time comes and would tweak the same so it works.

Great Saw For The Money!!
5/ 5stars

This is a great saw for the money! To get a saw with miter cutting ability for this price is unheard of! Very well built and works great so far! I've only had the saw for a couple of weeks but I've used it a bunch and it seems very well built! So far I am very pleased! Highly recommend!

Worth every penny
5/ 5stars

I already own some Grizzly wood working tools so I was pretty sure the quality was there. I purchased the G9742 about a month ago and have cut small and thick pieces and am very pleased.
Check out this cut, 1 1/4" X 5 3/4" steel completed in 18 minutes, not an industrial saw but I didn't pay an industrial saw price either. https://www.facebook.com/photo.php?fbid=10208642989458239&set=a.1163021521788.2023614.1415368863&type=3&theater

4/ 5stars

I bought this a dew months back and it works quite well once you've worked out all the nuances, i.e.- squaring blade, fine tuning valves, etc. One gripe in particular is that the swivel does go from 45 degrees all the way to 60 degrees on the other side of zero but you can't cut opposite angles without moving the base clamp to the other side of the machine. That probably sounds like nonsense, but trust me, it is an issue. You can swing anywhere from 0-60 or 0-45 but you can't swing from 45 in one direction to 60 in the other direction without relocating the clamp. It would end up cutting into itself. Other than that, it works fine.

Meets and exceeds expectations
5/ 5stars

I bought the to build a welding cart and future metal projects. Would recommend you change the included blade for more accurate and faster cuts. The cart required cuts of 1.5 and 1 inch steel tubing along with 1/4 inch plate. All 45 and 90 degree cuts were accurate. Cut speed was not painfully slow in my opinion even with a slow down feed rate when using the saw for the first few cuts. While a chop saw will be faster, I would rather have the accuracy of the grizzly bandsaw. If I were to make a few suggestions for modifications, they would be the following.\r\n\r\nMetal Vise Adjustment- The Allen screw for the handle that attaches to the acme screw which adjusts the distance between the metal vise. Please redesign to have the screw go through the front of the acme screw. It seemed to come loose if you had to open and close the vise jaws for multiple cuts.\r\n\r\nVise Jaws - Why don't you make the front and back sides of the jaws the same height. This would allow the jaws to hold for example two 1.5 inch square tubes for a 90 degree cuts at the same time. \r\n\r\nAll in all this was a very worthwhile purchase. It it a good value for the price.
