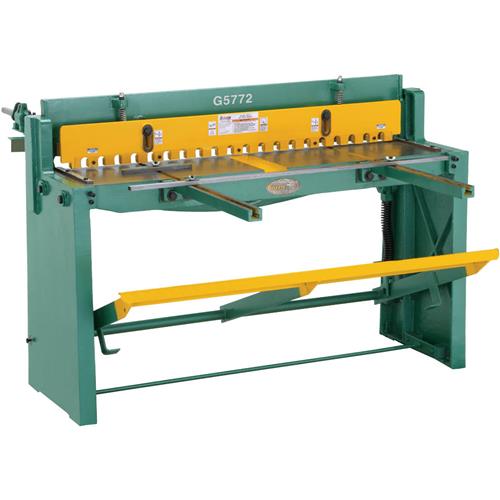

Item: G5772 | Model: G5772
9 Product Photos
Cut your work down to size with this heavy-duty shear. Cuts up to 52" wide with all the precision you'd expect from a machine this size. Features heavy cast iron body with foot control, precision ground blade, spring activated hold down, safety guard and two micro-adjusting rear stop gauges. Also includes table gauges and front extension arms for those really large sheet metal jobs.
View More Details
Features:
- Precision ground cast iron shear
- Cast iron frame
- 52" wide capacity
- Foot control
- Front stops and micro-adjustable rear stops
- Heavy cast iron hold-down clamp
Specifications:
- Maximum capacity: 52"
- Front gauge range: 0" - 12-1/2"
- Back gauge range: 0" - 35"
- Footprint: 59" x 21-1/2"
- Mild steel capacity full width: 18-gauge
- Mild steel capacity half width: 16-gauge
- Approx. shipping weight: 1150 lbs.
Overview
Cut your work down to size with this heavy-duty shear. Cuts up to 52" wide with all the precision you'd expect from a machine this size. Features heavy cast iron body with foot control, precision ground blade, spring activated hold down, safety guard and two micro-adjusting rear stop gauges. Also includes table gauges and front extension arms for those really large sheet metal jobs.
Features:
- Precision ground cast iron shear
- Cast iron frame
- 52" wide capacity
- Foot control
- Front stops and micro-adjustable rear stops
- Heavy cast iron hold-down clamp
Specifications:
- Maximum capacity: 52"
- Front gauge range: 0" - 12-1/2"
- Back gauge range: 0" - 35"
- Footprint: 59" x 21-1/2"
- Mild steel capacity full width: 18-gauge
- Mild steel capacity half width: 16-gauge
- Approx. shipping weight: 1150 lbs.
