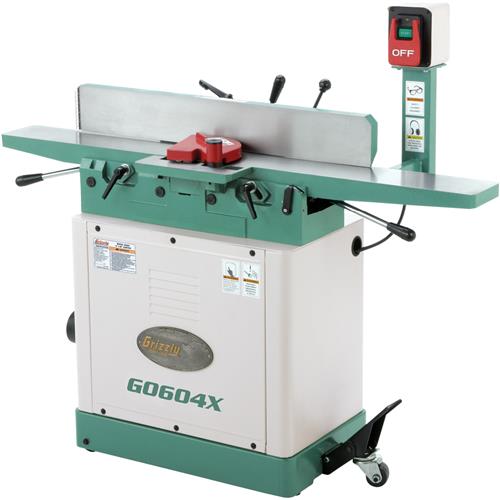

brand logo 6" Parallelogram Jointer

SKU: G0604X
MPN: G0604X
Showroom Pickup
Building on the success of our larger G0490 8" parallelogram jointer, we have created a 6" model with everything you could want. The extra-long infeed table and fence makes for straighter cuts while the 1-1/2 HP motor gets the work done quickly. With the built-in adjustment of the parallelogram design, you never need to worry about your tables not being parallel. CSA certified meeting CSA C22.2 #71.2-08 and UL 987-7th standards!

SPECIFICATIONS:

  • Motor: 1-1/2 HP, 120V/240V (prewired 120V), single-phase
  • Amps: 15A/7.5A
  • Precision-ground cast iron table
  • Table size: 6" x 55-1/2"
  • Floor to table height: 32-1/2"
  • Maximum depth of cut: 1/8"
  • Rabbeting capacity: 1/2"
  • Cutterhead diameter: 3"
  • Cutterhead: 4-knife, 6" x 5/8" x 1/8"
  • Cutterhead speed: 4800 RPM
  • Cuts per minute: 19,400
  • Power transfer: V-belt drive
  • Switch: Push-button with large off paddle for safety
  • Fence system: Positive stops @ ±45° & 90°& 135°
  • Approximate shipping weight: 360 lbs.

    FEATURES

  • Parallelogram table adjustment
  • Top-mounted switch controls
  • Center-mounted fence
  • 4 knife cutterhead
  • Built-in mobile base
  • 4" dust port
  • Infeed and outfeed tables have lever control for convenient table height adjustments
