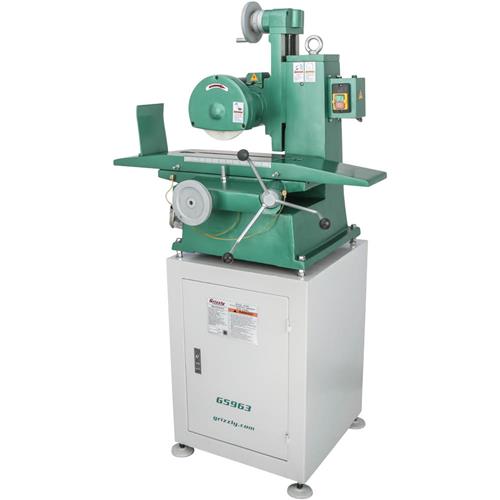

Grizzly 6" x 12" Surface Grinder w/ Stand

click to zoom

    See this item in our 2015 Annual Catalog!
    SKU: G5963
    MPN: G5963
    Showroom Pickup

    For years our customers have been asking us to carry a surface grinder at our great Grizzly price. We are happy to oblige! This 6" x 12" surface grinder has many features found on much larger machines and is perfect for the small tool room and metalworking enthusiast. When absolute surface grinding precision is needed in tough to machine materials, this is the machine to own. Large dials & fine thread screws yield maximum precision. Bring mirror-like finishes to your metalworking projects with this professional machine. Check out the many features below.

    Features:

    • Super slide table
    • Enclosed cabinet style stand
    • Swarf guard
    • One shot lubrication
    • Diamond wheel dresser with holder
    • Tool Box
    • Wheel balancing kit
    • Single phase 3450 RPM motor

    Specifications:

    • Table surface: 6" x 12"
    • Longitudinal travel: 13-1/4"
    • Cross travel: 7-1/8"
    • Maximum distance table to wheel: 8-7/8"
    • Column dial: 0.001" Res/Rev 0.05"
    • Cross dial: 0.001" Res/Rev 0.1"
    • T-slot: 1/2" x 3/4" x 15-1/2"
    • Grinding wheel: 7" D x 1-1/4" B x 1/2" W
    • Height: 64"
    • Width: 36-1/2"
    • Depth: 33"
    • Motor: 3/4 H.P., 110/220V, 7.4/3.7 Amps, prewired 110V
    • Shipping weight approx.: 591 lbs.

    :

    :
