Grizzly   |  Model: G0802
6" x 26" Vertical Mill with Power Feed and LED Worklight
Price: $3,055.00
Recently Added ×
You May Also Like

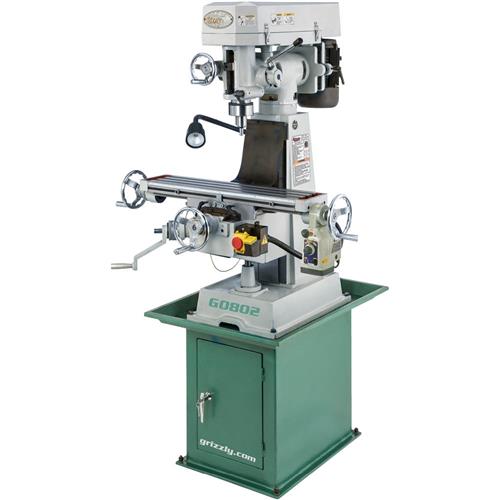

Grizzly G0802 - 6" x 26" Vertical Mill with Power Feed and LED Worklight

click to zoom

See this item in our 2017 Main Catalog!
578
See this item in our 2017 Spring Catalog!
25
Buy Now!
Price:
Freight:
Oversize:
Total:
Monthly payments as low as . Learn More
This Vertical Mills is a precision-made machine that is far more than just a step above a mill/drill. It features a tilting head, a knee, satin-finished dials, 9 speeds, and so much more. The power feeder provides smoother finishes and easy operation. Very competitively priced, too - you won't find a better deal!

Specifications:

  • Motor: 1.5 HP, 110V/220V, prewired 110V, 17.8A/8.6A, single-phase, TEFC
  • Spindle taper: R-8
  • Spindle travel: 3"
  • Swing: 10-1/2"
  • Max. distance spindle-to-table: 11"
  • T-Slots: 3 @ 11-1/16" centers, 1/2" wide
  • Table size: 6-1/8" x 26"
  • Table travel (longitudinal): 14-1/4"
  • Table travel (cross): 6"
  • Max. drilling capacity for cast iron: 1"
  • Max. drilling capacity for steel: 3/4"
  • Head tilt: 45° left & right
  • Ram swiveling angle: 45° left & right
  • Number of speeds: 9
  • Range of speeds: 230–2520 RPM
  • Overall dimensions: 45" W x 68" H x 41" D
  • Approximate shipping weight: 914 lbs.
Features:
  • Built-in LED worklight
  • Milling head micro-feed and adjustable depth stop
  • Lockable quill
  • Chuck guard
  • One-shot lubrication
  • Tapered roller spindle bearing
  • Precision-ground dovetail vertical and cross ways
  • Toolbox with service tools
  • Oil gun
  • 1-13mm drill chuck with arbor
  • 7/16"-20 drawbar
  • Two T-Slot bolts with nuts and washer
