Grizzly   |  Model: G7214Z
7-1/2 HP 3-Phase Spindle Shaper
Reg: $2,750.00
Price: $2,625.00
Recently Added ×
You May Also Like ×

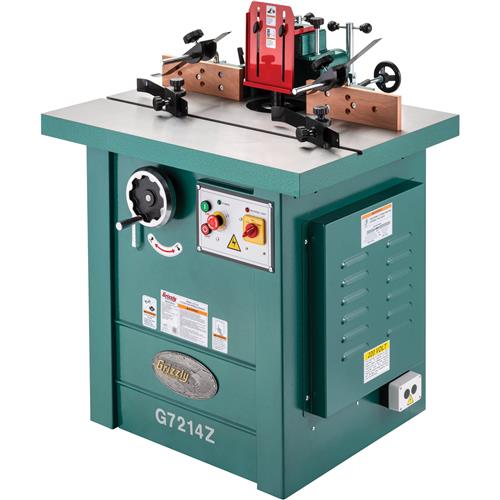

Grizzly G7214Z - 7-1/2 HP 3-Phase Spindle Shaper

click to zoom

    See this item in our 2016 Main Catalog!
    74 313 527
    See this item in our 2016 Spring Catalog!
    10
    Showroom Pickup

    Turn big shaper cutters with confidence. These Professional Shapers handle cutters up to 5-7/8" diameter by 5-1/8" tall and the four speeds let you slow down those big cutters from 10,000 RPM to 3600 RPM. A micro-adjustable split fence lets you dial in for full edge cutting support and spring hold downs increase safety and production. Make one of these Professional Shapers a producer in your shop!

    Features:

    • Motor: 7-1/2 HP, 220V/440V*, 3-phase
    • Heavy-duty, precision-ground cast iron table
    • Table size: 35-1/2" wide x 28" deep
    • Table counterbore: 7" x 5/8" deep
    • Spindle travel: 3-1/4"
    • Spindle sizes: 3/4", 1 and 1-1/4"
    • Spindle capacity: 5-1/8" (1-1/4" spindle)
    • Spindle speeds: 3600, 5100, 8000 and 10,000 RPM
    • Maximum cutter diameter: 5-7/8"
    • Overall dimensions: 35-1/2" wide x 42" high x 34-3/4" deep
    • One-piece cabinet-style stand
    • Epoxy paint
    • Independent, micro-adjustable fence with 4" dust port
    • Shielded and permanently lubricated ball bearings
    • Approximate shipping weight: 613 lbs.

    Includes:

    • 3 spindles with 8 spacers and 2 nuts
    • 2 wood fence pieces
    • 1 cast iron miter gauge
    • 4 hold-down assemblies
    • 3 table inserts: 7" OD x 3-1/2" ID, 3-1/2" OD x 3" ID and 3" OD x 2" ID
    • Assorted wrenches

    *Prewired for 220V. If you require 440V operation, Grizzly must convert your machine at the time of purchase to maintain the machine’s warranty. A $250 nonrefundable fee will be added to your order. Please allow extra shipping time for the conversion. If you need more information, please contact technical service.

    :

    :

    0 Customer Reviews : Sign in to write a review

    Be the first to write a review . . .

    Animation for G7214Z
    ×
