Description

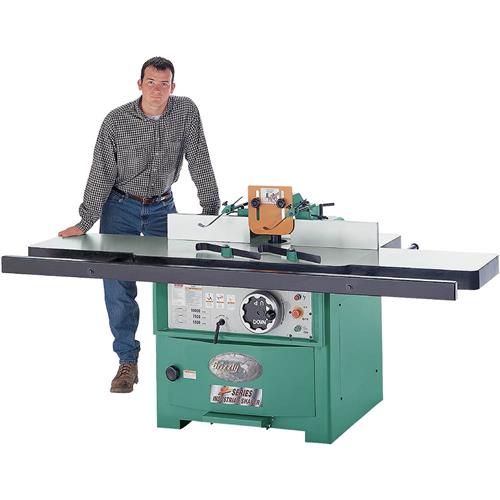

This massive Spindle Shaper is built to our exacting specifications. Ultra smooth power, durability and capacity are built into this machine. And check out these features: huge table measuring over 91" x 33", table extension allows over 36" of support beyond the spindle, 11-3/4" cutter diameter capacity, 5-1/2" capacity under the spindle nut, 5" dust port, micro adjustable 2 piece fence and so much more! Use this 7-1/2 H.P. of high production power to generate revenue quickly! Get the most out of your production runs.

Specifications:

• Spindle sizes: 1-1/4"
• Spindle length: 6"
• Spindle capacity under nut: 5-1/2"
• Spindle travel: 5"
• Dust port: 5"
• Table counterbore: 13"
• Maximum cutter diameter: 11-3/4"
• Spindle speeds: 5500, 7500 and 10000 R.P.M.
• Table size: 91-5/8" x 33-1/4"
• Overall dimensions: 35-1/2"D x 91-5/8"W x 39-3/4"H
• Motor: TEFC induction, 7-1/2 H.P., three phase, 220/440V
• Switch: Push button ON/OFF, emergency stop, forward and reverse
• Amps: 20/10
• Cycle/R.P.M.: 60 Hertz/3450 R.P.M.
• Bearings: Shielded and lubricated ball bearing
• Shipping weight approx. 1600 lbs.

Features:

• 2 spring hold-down assemblies
• Fence adjustment includes quick release levers and knob-equipped adjusters
• 2 table inserts
• Spindle includes spacers and nuts
• Table extension allows support 36" from spindle
