Grizzly   |  Model: G8688
7" x 12" Mini Metal Lathe
Price: $515.00
Recently Added ×
You May Also Like

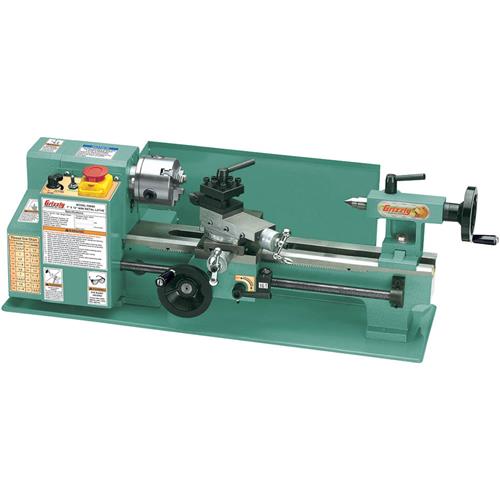

Grizzly G8688 - 7" x 12" Mini Metal Lathe

click to zoom

See this item in our 2017 Main Catalog!
531
Showroom Pickup
Alternate Text
Powered by a 3/4 HP motor, this lathe also features: variable speeds (0-2500 RPM), inch and metric reading dials, turret tool post, chip tray & splash guard.

Features:

  • Variable Speed
  • 16 TPI Reversible Leadscrew
  • Forward and reverse in all speeds
  • Chip Tray & Backsplash Guard
  • Threading Dial Indicator
  • Standard & Metric Graduation
  • Made in an ISO 9001 factory

    Specifications:

  • Swing over bed: 7"
  • Distance between centers: 12"
  • Bore Size of Included Chuck: 16mm
  • Spindle bore: 20mm
  • Spindle nose taper: MT #3
  • Tailstock taper: MT #2
  • Tailstock travel: 2-1/2"
  • Cross-slide travel: 2-3/4"
  • Maximum tool bit size: 5/16"
  • Speed range: Low Range: 0-1100 RPM, High Range: 0-2500 RPM
  • Range of standard threads: 12-52 TPI
  • Range of metric threads: 0.4-2.0mm
  • Motor: 3/4 HP, 110V, single-phase, 3A
  • Number of thread pitches: 18 inch & 10 metric
  • Net weight: 75 lbs.
  • Approximate shipping weight: 90 lbs.

    Standard Equipment:

  • 3" Three-Jaw Chuck with External Jaws
  • 6-1/4" Faceplate
  • Steady Rest
  • Four-Position Turret Post
  • Complete Set of Change Gears
  • MT #2 Dead Center
  • Wrenches
  • Accessories and Related Items: View All

    You May Also Like:

    Customers who purchased this item also purchased:

    2 Customer Reviews (5 out of 5 stars): Sign in to write a review

    G8688 7" x 12" Mini Metal Lathe purchase review
    5/ 5stars

    The G8688 7" x 12" Mini Metal Lathe was a good purchase for me. I'm new to metal working and have already broken a couple cutting tools and blown a fuse, but the machine was straight forward to setup and learn so I'm routinely producing parts with about 1 to 2 mil accuracy and expect to improve. The best part of the purchase was the Grizzly team! They went out of their way to make shipping and delivery a good experience for me. And, I had a technical issue just after purchase that they bent over backwards to make right. Excellent team!

    Excellent Value
    5/ 5stars

    Grizzly is known for high quality shop machinery, and this lathe is no exception. It has a relatively small footprint, but provides exceptional capability for its small size. I needed a bench top lathe for making small parts for model trains, and this unit is a perfect fit at a competitive price.
