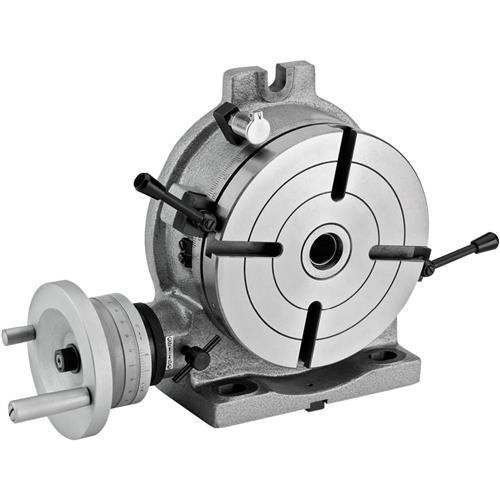

brand logo 8" Horizontal/Vertical Rotary Table - Yuasa Type

SKU: G9298
MPN: G9298
Showroom Pickup
High precision, Yuasa type Rotary Table features extra deep coolant channel, dual positive action locks, very low profile, 10 second vernier scale, gear drive with oil immersion and satin chrome dials.

Specifications:

  • Clamping surface flatness (concave): 0.0006"
  • Cylindrical center bore concentricity: 0.0008"
  • Taper center bore concentricity: 0.0008"
  • Surface to base parallelism: 0.0008"
  • Surface to angle face squareness: 0.0004"
  • Surface to center slot squareness: 0.0008"
  • Overall height (horizontal): 3.944"
  • Height to center hole (vertical): 5.985"
  • Table height in horizontal position: 4"
  • Table height in vertical position: 9-1/4"
  • Morse taper: #3
  • T-slot width: 0.465"
  • Approximate shipping weight: 75 lbs.
  • Size: 8"
  • Slots: 4
  • Center Hole: MT #3
